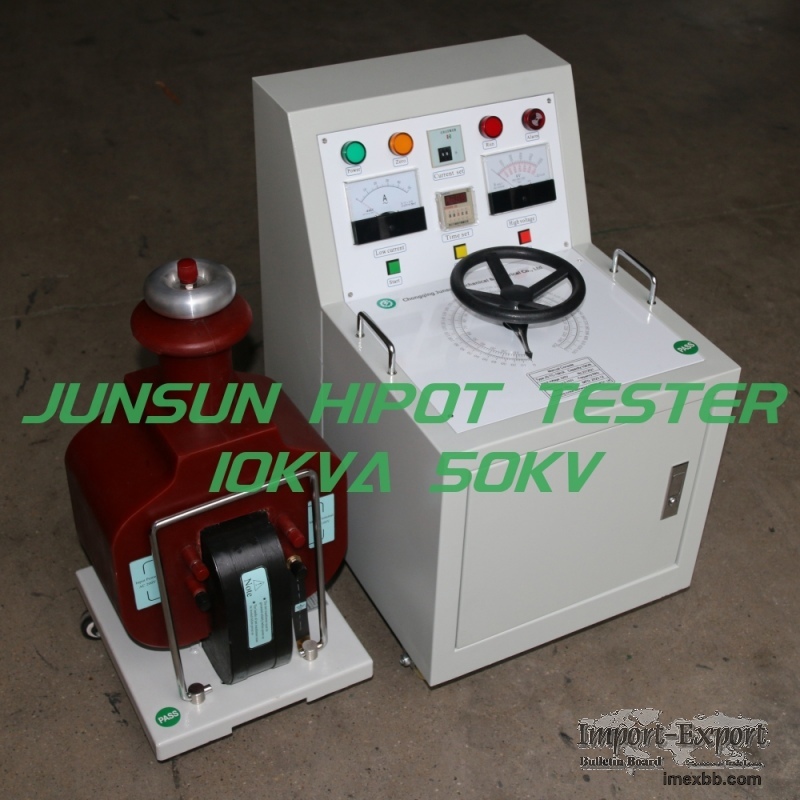

AC and DC 10KVA/50KV Hipot Tester Withstand Voltage Dry Testing Transformer

JS-GTB series Hipot Tester adopts advanced production equipment, new
technology of coil winding epoxy vacuum casting and CD type iron core.
Compared with similar oil-immersed transformers, it significantly reduces the
weight and volume, improves the insulation strength and humidity resistance,
and effectively weakens the magnetic flux leakage and greatly strengthens the
transformer's ability to withstand the impact of the test short-circuit
current.

JS-GTB series Hipot Tester can also make DC high voltage test by using a
matched high-voltage silicon stack.

JS-GTB series Hipot Tester is light weight, small volume, beautiful
appearance, stable performance, convenient usage and carrying, especially
suitable for site operation.

JS-GTB series Hipot Tester is applicable to power system and all power users
to detect on site the insulating performance test of all electrical
equipment, high voltage power sources of all appliance's voltage system or
equipment with DC high voltage small current.

TECHNICAL TARGET:
1. Impedance voltage: 4.5% - 8%
2. Output voltage waveform: sine wave
3. Surface temperature rise: <55℃
4. No-load loss consumption: 0.2% - 0.35%
5. Allowable continuous operation time: 2 hours
6. Interrupted operation time: continuous

Minimum Order: 1 sets
