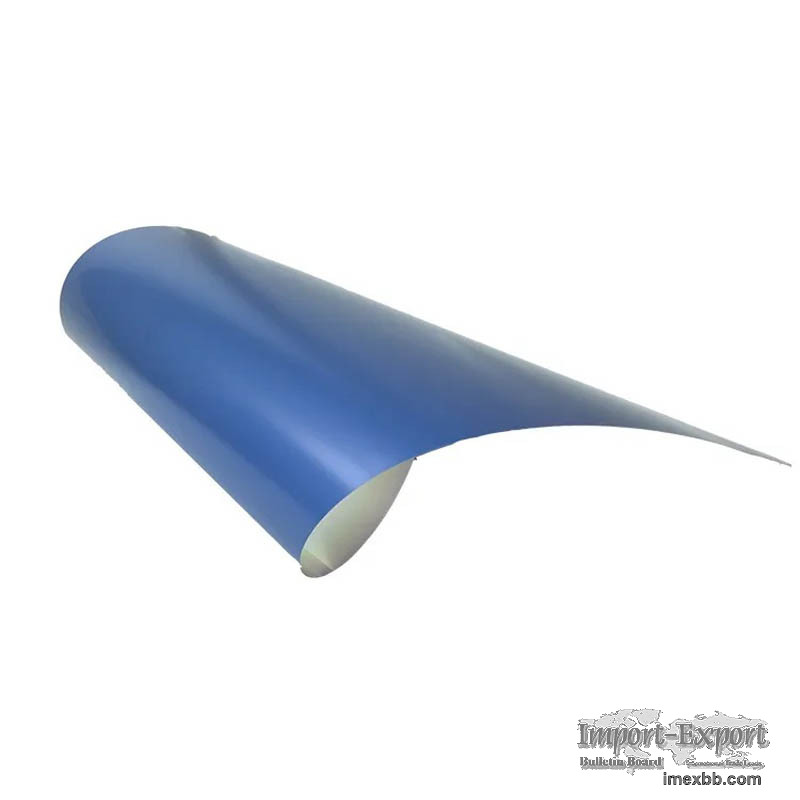

830nm Thermal CTP Plate for Digital Printing, 0.15-0.35 mm Thickness

830nm Thermal CTP Plate for Digital Printing, 0.15-0.35 mm Thickness
Tags: 830nm Thermal CTP Plate / Digital Prepress Thermal Aluminum Plate /
Offset CTP Printing Plate


https://www.printarea-plate.com/t , hermal-ctp-plate


Type: CTP Plate
Style: Positive
Applications: Commer , cial color printing, packaging printing, book printing,
and newspaper printing
Production Capacity: 50,000 sqm/month
Transport Package: One polybag/hanger/color box per piece, packed accordingly
HS Code: 3701302400


Our thermal CTP plates feature a photosensitive coating designed for thermal
laser systems operating at an 830 nm wavelength. They can be imaged directly by
near-infrared lasers at approximately 830 nm, eliminating the need for
conventional film-based intermediate processes.
The plates offer fast imaging speed, stable halftone dot reproduction,
simplified plate-making procedures, and suitability for automated production.
They are widely used in commercial printing, book and magazine printing,
packaging printing, label printing, and various short- to medium-run offset
printing applications.
Available plate thicknesses include 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, and
0.35 mm. Different thicknesses and plate sizes can be selected according to
printing press models, print-run requirements, and format requirements,
providing printing companies with stable, efficient, and flexible digital
prepress solutions.

Key Product Advantages
High Imaging Accuracy:
Reproduces 1%-99% halftone dots with an accuracy of ±1%. Supports 20 μm FM
screening and delivers sharp edges, meeting the requirements of high-end
printing.
Excellent Run Length:
Provides 80,000-120,000 impressions without baking and 100,000-200,000
impressions after baking. Some applications can achieve more than 200,000
impressions, making it suitable for long-run jobs.
Daylight Operation:
Insensitive to fluorescent lighting and does not require a darkroom. This
improves the working environment and reduces facility modification costs.
Fast Ink-Water Balance:
The optimized graining and hydrophilic surface treatment enable fast ink-water
balance on press, reducing paper waste during start-up.
Broad Equipment Compatibility:
Compatible with all mainstream 830 nm thermal CTP plate setters, including both
imported and domestic equipment.
Stable Storage Performance:
Sensitivity variation before and after transportation is less than 3%, while
sensitivity variation after one year of storage at room temperature is less
than 5%. Standard shelf life is 12 months.
Thickness Options and Application Scenarios
830 nm thermal CTP plates are available in thicknesses from 0.15 mm to 0.35 mm
to meet the needs of different printing applications.
0.15 mm-0.20 mm (Thin Plates):
Suitable for high-quality fine printing, such as magazines, premium promotional
materials, and high-end brochures. Thin plates offer higher resolution and
finer halftone reproduction, making them ideal for short-run premium printing
that requires exceptional image detail.
0.25 mm-0.30 mm (Medium-Thickness Plates):
Suitable for commercial printing, book printing, and general packaging
printing. These plates offer a good balance between durability and imaging
precision and are the most commonly used thickness range.
0.30 mm-0.35 mm (Thick Plates):
Suitable for long-run, high-volume printing, such as newspaper printing,
packaging printing, and industrial printing. Thick plates provide greater
mechanical strength and durability and can withstand more printing cycles.
Quality Control and Global Supply Capability
We are a manufacturer specializing in the research, development, production,
and supply of printing plates and digital prepress materials. We provide
reliable CTP plate solutions to printing companies, printing consumables
distributors, publishing printers, and packaging printing customers worldwide.
Each batch undergoes strict quality inspection, including micro-defect
detection, coating uniformity inspection, and printing fatigue simulation. The
plates are protected with interleaving paper and vacuum-sealed in light-proof
and moisture-proof packaging to ensure a shelf life of up to 18 months under
standard storage conditions.
We support OEM customized sizes, private labeling, and flexible export
logistics services.
FAQ
Q: What laser wavelength is required for this printing plate?
A: It requires an 830 nm laser and is compatible with all domestic and
international 830 nm thermal CTP plate setters.
Q: What is the maximum plate width available?
A: The maximum width is 1,500 mm. Other sizes can be cut according to customer
requirements.
Q: What is the maximum run length of the plate?
A: The run length can reach up to 100,000 impressions without baking and up to
300,000 impressions after baking.
Q: What is the thickness range of the plate?
A: The plate thickness range is 0.14 mm to 0.40 mm.
Q: What is the coating color of the CTP plate?
A: The coating color is blue.

Minimum Order: 3000 square metres
