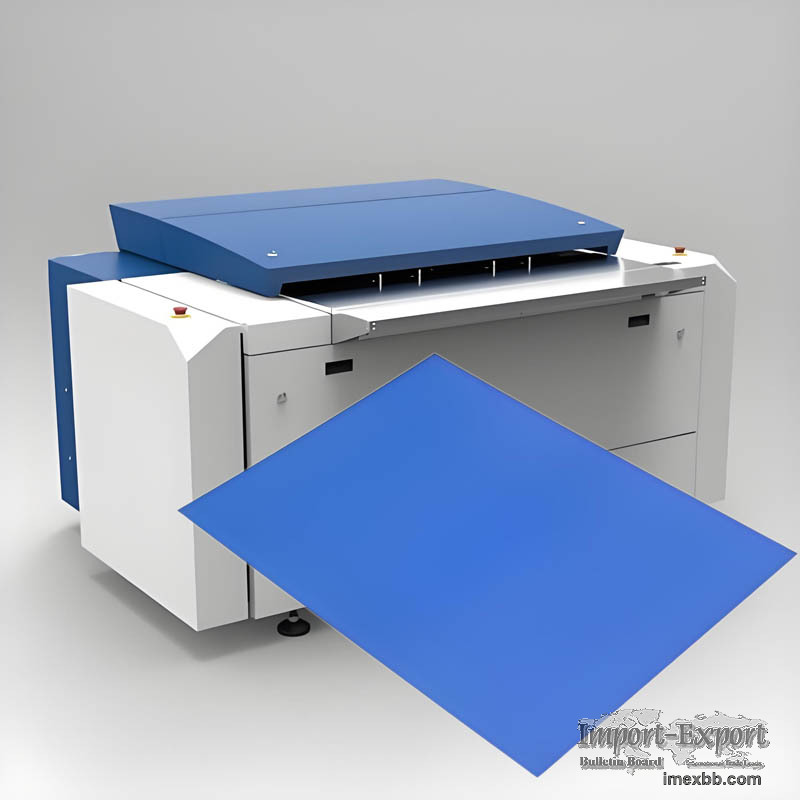

High-Sensitivity Thermal Offset Printing Plate for Offset Press

Thermal offset printing plates are CTP plate materials manufactured using thermal imaging technology. They are typically made from
high-quality aluminum substrates, which undergo electrochemical graining to create a uniform roughened surface, followed by
anodizing and special coating treatment. This provides excellent photosensitivity and printing adaptability.
Unlike conventional UV-exposure offset plates, thermal CTP plates use laser-generated heat to act directly on the heat-sensitive
coating on the plate surface. The coating undergoes physical or chemical changes to form the image and non-image areas.
These products are suitable for sheet-fed offset presses, commercial web offset presses, and certain packaging printing equipment.
They can meet the requirements of text, line work, solid areas, gradient patterns, and high-definition halftone images.

Thermal CTP Plate Specifications

Item:Technical Specification
Product Type:Thermal CTP Offset Printing Plate
Substrate:High-purity electrolytic aluminum sheet
Common Aluminum Alloys:1050, 1060, 1070
Thickness:0.13 mm, 0.15 mm, 0.20 mm, 0.27 mm, 0.30 mm
Width:Customized according to customer equipment requirements
Imaging Method:Thermal laser exposure
Sensitivity Wavelength:Approximately 830 nm
Resolution:Up to 2400 dpi or above
Dot Range:1%–99%
Printing Method:Offset printing
Compatible Equipment:Mainstream thermal CTP plate setters
Coating Color:Blue or green coating, depending on model

Key Advantages of Thermal CTP Plates

1. High Sensitivity for Improved Plate-Making Efficiency
The high-sensitivity coating requires lower exposure energy, significantly reducing the exposure time for each plate. This helps
eliminate prepress plate-making bottlenecks, allowing CTP plate setters to achieve their full production capacity and meet demanding
delivery schedules.
2. Accurate Dot Reproduction and Outstanding Imaging Quality
Thermal imaging offers a distinct temperature threshold, resulting in sharp boundaries between image and non-image areas. The plate
supports 1%–99% dot reproduction and 240 lpi AM screening, and can even achieve 20-micron FM screening. It delivers excellent
reproduction of fine text and high-fidelity images.
3. Excellent Run Length for Both Short and Long Print Runs
The plate combines high run length with cost-effectiveness. Unbaked plates can achieve a run length of more than 100,000
impressions, while baked plates can reach more than 300,000 impressions. Premium double-layer coated products can achieve 400,000 to
600,000 impressions, greatly reducing plate replacement frequency and plate consumption.
4. Daylight Handling for an Improved Working Environment
No complicated darkroom installation is required. Plate operators can load plates, expose, and process them under normal lighting
conditions. The plate has high tolerance to ambient light, reducing workshop space and equipment investment while making the
production process more convenient, safe, and controllable.
5. Rapid Ink-Water Balance and Reduced Start-Up Waste
The plate substrate is treated with electrochemical multi-layer graining and anodizing, creating clearly defined hydrophilic and
oleophilic areas. After mounting on the press, the plate quickly reaches ink-water balance, enables faster color matching, and
achieves stable printing performance. This significantly reduces make-ready time and minimizes paper and ink waste.
6. Strong Compatibility and Reliable Quality
The plate is fully compatible with mainstream 830 nm thermal CTP plate setters. With advanced coating technology, it provides
excellent exposure and processing latitude, ensuring high consistency in mass production. It is an ideal solution for printing
companies seeking standardized, scalable, and stable production.

Applications

High-sensit , ivity thermal offset printing plates have a wide range of applications and can be selected according to print quantity,
paper type, ink system, and equipment conditions. Main applications include:
Commercial brochures, corporate catalogs, product catalogs
Books, textbooks, magazines, journals, and book covers
Posters, leaflets, flyers, instruction manuals, and advertising inserts
Pharmaceutical packaging, food packaging, cosmetic packaging, and gift box packaging
Paper bags, hang tags, labels, and premium paper products
Bank forms, invoices, documents, office printing materials, and forms
Short- and medium-run fast printing, as well as standard-volume offset printing orders
For jobs with complex content, high graphic and image accuracy requirements, and tight delivery schedules, high-sensitivity thermal
offset printing plates provide efficient and reliable plate-making support.

Why Choose Us?

As a professional manufacturer and exporter of thermal CTP offset printing plates, we focus on supplying high-quality and highly
stable offset plate materials to printing companies worldwide. With advanced production equipment, a strict quality-control system,
and extensive international trade experience, our products have been exported to many countries and regions across Asia, the Middle
East, Europe, Africa, and South America.
Our products are widely used in commercial printing, packaging printing, publishing, and label printing industries.
Our company is equipped with modern thermal CTP plate production lines, including advanced automatic coating equipment, electrolytic
graining equipment, anodizing production lines, and high-precision testing instruments. These facilities ensure excellent and
consistent quality for every plate.
We always adhere to the principle of "Quality First, Customer First." We provide reliable products and professional, efficient
services to help customers improve printing efficiency and reduce production costs.

FAQ

Q1: Which CTP machines are suitable for thermal offset printing plates?
A: Our thermal CTP offset printing plates are compatible with most 830 nm thermal CTP plate setters and can work with various
internationally recognized equipment brands. Specific compatibility can be confirmed based on your machine model.
Q2: What thicknesses are available for your thermal offset printing plates?
A: Standard thicknesses include:0.13 mm, 0.15 mm, 0.20 mm, 0.27 mm, 0.30 mm, etc.
Other special specifications can also be customized according to customer requirements.
Q3: What is the run length of the thermal offset printing plate?
A: Run length depends on printing conditions, ink type, paper quality, and equipment maintenance. Under normal conditions, our
plates can meet the needs of high-volume commercial and packaging printing. For higher run-length requirements, we can recommend
suitable product solutions.
Q4: Do you support customized sizes?
A: Yes. We can cut and customize plates according to the customer's CTP machine model or specific size requirements to suit
different printing equipment.
Q5: Can you provide free samples?

Minimum Order: 1000 square metres
