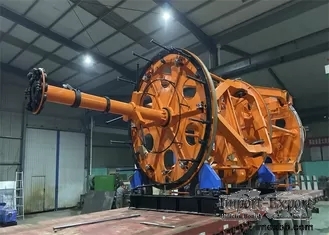

960rpm AC Motor Cable Stranding Machine Pneumatic Caterpillar Traction

Orange Color TQD2500 Pneumatic Caterpillar Traction Device 960rpm AC motor
Haul-off



1,Φ2000 portal type pay-off machine:



Take-up form upper casing type, gantry ground rail walking type；
Reel dia Ф1000-Ф2000㎜；
Take-up tension form manual friction disc (tension adjustable)；
Travel motor BWED121-23×17-1.5KW (AC motor)
Lifting motor BLD11-43-1.5KW (2 sets)
Clamping motor Y90L-6-B5-1.1KW,960rpm




Structure form:

Potal rail walking type, upper casing type structure. The gantry is made of
bending and welding. The two tops of the reel are driven by two motors via a
cycloid reducer to lift the screw nut. Each apex can be lifted separately or
simultaneously, and is equipped with mechanical and electrical protection
devices. It can be equipped with different specifications of the top sleeve to
meet the installation of different specifications of the reel; the reel
clamping is realized by the motor cycloid reducer, and the clamping overload
protection is provided. The tension of the pay-off is realized by manual
friction disc, which is manually adjustable and stable. Reliable and easy to
operate. The take-up frame adopts the centering device to realize the centering
line.
