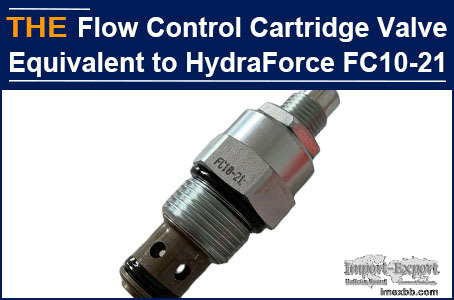

AAK Flow Control Cartridge Valve Equivalent to HydraForce FC10-21

Today, AAK would like to introduce a hydraulic cartridge flow control valve
E-FC10-21, benchmark HydraForce FC10-21. It is a screw-in, cartridge style,
variable orifice, hydraulic flow control valve with reverse flow check. The
E-FC10-21 valve increases its orifice value from fully closed to fully open
with clockwise adjustment rotation.

Many hydraulic cartridge valve manufacturers in Ningbo China do not have
this model. One of our customers in Turkey checked with 7 hydraulic
cartridge valve manufacturers in Ningbo China within 1 month, but none of
them have this cartridge flow control valve. He was very happily to find it
from AAK hydraulic valve website finally via google, and the manufacturing
quality and performance is equivalent to HydraForce FC10-21.

The selling points of this hydraulic cartridge flow control valve are:
1. Benchmarking HydraForce FC10-21
2. Its service life is 2 times that of its peers

Technical parameters of AAK E-FC10-21 HYDRAULIC CARTRIDGE FLOW CONTROL
VALVE:
Working Pressure: 240 bar (3500 psi)
Flow Rating: 57 lpm (15 gpm) At fully open (2 turns) 5.5 bar (80 psi)
Internal Leakage: 0.50 ml/min (10 drops/min) Max. at shut off
Operating torque required: 0.34 Nm (3 in-lb) At 7 bar (100 psi)
4.5 Nm (40 in-lb) At 207 bar (3000 psi)
Temperature Range: -40°C ~ +120 °C (with Buna N seals)
Fluids: Mineral based or synthetic hydraulic fluid with lubricating
properties
Fluid viscosity range: 7.4 to 420 cSt (50 to 2000 ssu)
Cavity: VC10-2A

For this screw-in, cartridge style, variable orifice, hydraulic flow control
valve with reverse flow check, its quality is benchmarking HydraForce FC10-
21, you can try it out!
