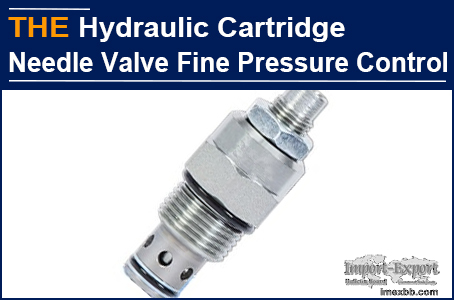

AAK Hydraulic Cartridge Needle Valve Fine Pressure Control

Karl is from Sweden. He purchases the standard parts of hydraulic cartridge
valves from Italy, and the customized parts of hydraulic cartridge valves from
Ningbo. Some time ago, when they developed hydraulic drilling equipment, they
needed to customize the hydraulic cartridge needle valve. He made samples in a
hydraulic cartridge valve manufacturer in Ningbo. Due to the unstable pressure
control of the hydraulic cartridge needle valve, the selling point of the new
hydraulic drilling cannot be realized. The Italian hydraulic cartridge valve
manufacturer has no time to customize. The engineer pushed, and Karl was very
anxious.

This Ningbo manufacturer contacted me and hoped that AAK would develop this
hydraulic cartridge needle valve. I said: I have no interest to develop for my
peers. If you are really in a hurry, let the customer contact AAK directly. The
next day, I received an email from Karl. According to the schematic diagram of
the hydraulic system provided by him and the anatomical sample of the original
hydraulic cartridge needle valve, as long as the pressure balance within the
valve is solved and the most suitable flow area is found, this hydraulic
cartridge needle valve can achieve fine pressure control.

After 60 days, AAK sent 10 samples of hydraulic cartridge needle valves.
Yesterday, Karl emailed us to inform that the equipment was smoothly debugged.
Their engineers admired AAK's idea for the precise pressure control of the
hydraulic cartridge needle valve. AAK hydraulic cartridge needle valve has an
appropriate flow area between the valve spool and the valve seat, which reduces
the back pressure when the hydraulic cartridge needle valve has a large
displacement, and the through-hole of the valve spool achieves pressure balance
up and down the valve spool.

1. The lower part of the valve rod of the hydraulic cartridge needle valve is
connected to the valve spool, and the upper part of the valve body has an
axially machined orifice in which an anti rotation cylinder can be inserted. A
circumferential lock is formed between the anti rotation cylinder and the valve
body.

2. The spool of the hydraulic cartridge needle valve is inserted into the anti
rotation cylinder and forms a circumferential lock between the cartridge and
the anti rotation cylinder, with an axial sealing and sliding fit. There are
oil inlet and outlet channels on the side and lower axial directions of the
valve body, respectively. At the same time, a through-hole is provided on the
valve spool to achieve pressure balance up and down the valve spool.

3. The valve seat is installed in the oil outlet passage and forms an axial
insertion fit with the upper valve spool. The upper part of the valve spool is
cylindrical, and the lower end is symmetrically provided with two V-shaped
throttle ramps. When the valve spool is closed, the valve spool chamfer surface
contacts the valve seat chamfer surface, which can achieve fluid cutoff.

AAK hydraulic cartridge needle valve, fine pressure control, few cartridge
valve manufacturer can handle it, you can also give it a try!
