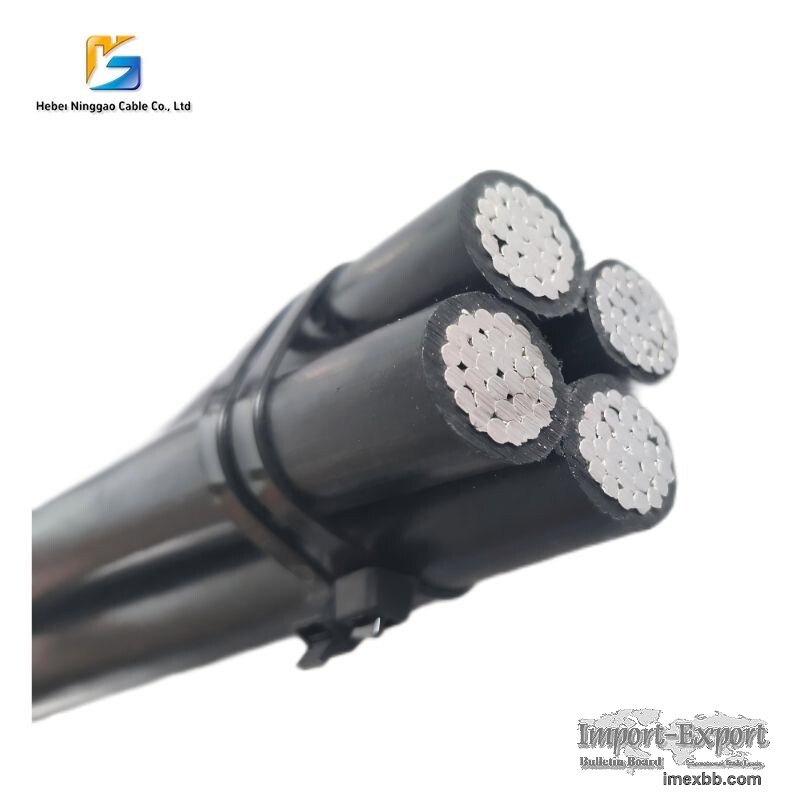

ABC Overhead Insulated Power Cable

ABC Overhead Insulated Power Cable
ABC is an aluminum-core PE-insulated overhead cable, lightweight, corrosion-
resistant, suitable for overhead power distribution. Ideal for urban/rural
power grids with good insulation and weather resistance.
The ABC Overhead Insulated Power Cable (Aerial Bundled Cable) is engineered for
modern overhead power distribution networks. It serves as a superior
alternative to traditional bare conductors by providing a safer, more efficient
insulated solution. The Low Voltage Power Cable consists of insulated aluminum
phase conductors bundled with a neutral messenger system. This design enhances
safety, minimizes power loss, and provides exceptional resistance to
environmental stressors. It is a staple for urban power grids, rural
electrification, and grid modernization projects worldwide.
Rated Voltage: 0.6/1kV (Medium voltage 11kV variants available).
Conductor: Aluminum or Aluminum alloy.
Insulation: XLPE or PE (Weather-resistant and UV-stabilized).
Neutral Messenger: AAAC or ACSR (Optional).
Structure: 2-core / 3-core / 4-core + neutral messenger.
Standard: IEC 60502-1 / NFC 33-209 / BS / ASTM (Customizable).
ABC Cable Basic Structure:
Conductor: Stranded aluminum alloy (complying with IEC 60228), lightweight and
high-conductivity.
Insulation: Cross-linked Polyethylene (PE), excellent electrical insulation and
heat resistance (adapts to -40°C~90°C environments).
Key Performance:
Voltage Rating: 0.6/1kV (low-voltage overhead distribution).
Weather Resistance: UV-resistant, anti-aging, suitable for outdoor overhead
installation (no need for additional sheathing).
Installation Advantage: Light weight reduces pole load; flexible for easy
erection.
Application Scenarios:
- Urban & Rural Grids: Ideal for overhead distribution in both densely
populated cities and remote rural electrification projects.
- Infrastructure Modernization: Direct replacement of bare conductor lines to
improve safety and grid reliability.
- Specialized Environments: Highly recommended for coastal, high-humidity, or
forested regions where environmental contact is likely.
- Public Utility Systems: Efficient power supply for street lighting and
municipal infrastructure.
