ABD Horizontal Powder Coating Line Natural Gas Heating Powder Painting

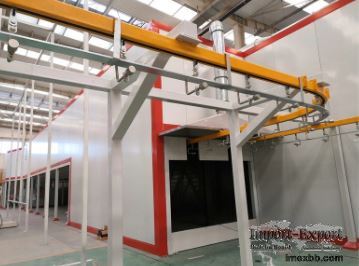

This red automatic powder coating line was designed for the customer who supply
the powder coating services to the others.

The working process for this line is, loading --- spray type pre-treatment ---
water drying --- automatic powder coating --- automatic powder curing ---
cooling --- unloading.

Automatic chain system: 2 sets driving system and 2 tensioning system. Chain
can bearing 100kg/single point. Chain speed, 2.5m/min (you can adjust according
your need). Total length for the chain, 295m

Pre-treatment system: Stainless steel spray type.

Steps are, pre-degreasing --- degreasing --- water washing 1 --- pure water
washing 2 --- nano ceremic --- water washing 1 --- pure water washing 2

Automatic water drying oven: this oven only have the temperature for 120
Celsius.

Automatic powder coating booth: the cyclone system will help you to recycle the
99.5% of the powder, and the material is PP type, it can allow you to change
the color just in 15min. And the reciprocator and automatic gun will help you
to do the automatic powder coating. There will be also 2 manual working station
to making up the powder coating for some dead corner.

Automatic powder curing oven: powder curing oven have the temperature for
180~230 Celsius. The work piece can curing 20~30min just according your need.
