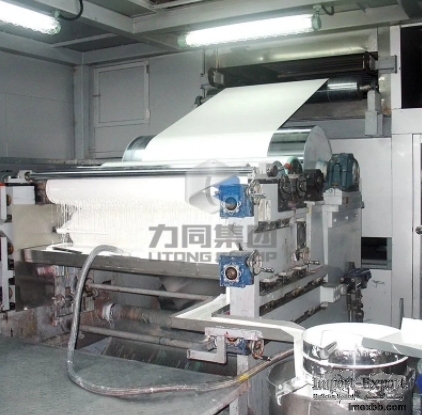

TZ1300-25 1-side 1-coating Line

TZ1300-25 1-side 1-coating Line

Coating line functions:

This is an economic sort of coating line relate to slim ACP top/bottom coil
coating. Product thickness 0.02 mm ~ 0.1 mm appropriates for dividing panels
This coating line is an enhance for those coating factories which intend to
enhance product variety. It also matches factories in restricted measurement.

Application: For coating top coil and bottom coil of ACP( Aluminium Composite
Panel), specially for coating slim gauge aluminium coil making use of for
dividing panels.
Advantage: Economical and also easy to use, tiny dimension workshop needed

1. Main parameters of coatingline
Material parameter
Thickness: 0.02～0.1mm
Width: 1240mm
Outer diameter OD(max): Φ1100mm
Inner diameter: Φ150mm, Φ405mm
Bobbin material: Steel or paper
Inverval-layers deviation tolerance: ≤0.8 mm (Excluding the bottom 5
layers and exterior 2 layers)
Coil over-all deviation tolerance: ≤2 mm (Excluding the bottom 5 layers
and exterior 2 layers)
Coating thickness: Dry film thickness: 8~15 um

Product Weight: Max 3000kg（Excluding bobbin）
CCL Processing Speed: 25 m/min (Speed benchmark: thickness 0.1mm coil
exclude PVDF coating)

Heating Energy Source: LNG, LPG

Roller coating Process: Continuous 1 side 1 coating & baking

Properties and features:
Roller width: 1500mm
Coils feeding centering adjustment : ±75mm
Threading speed: 5～10m/min（Adjustable）
Line maximum speed: 25m/min
Line speed accuracy: Steady Speed, ±0.1%;Acceleration, ±0.4%
Uncoiling tension range: 80～150kgf
Processing tension range: 80～150kgf
Coiling tension range: 80～200kgf
Tension accuracy: Steady Speed, ±1.0%; Acceleration, ±2.0%
Line space dimensions: 55000mm×7500mm×6000mm
Heating Energy Source: LNG, LPG

2. Basic Production Process
Coil loading → Uncoil machine → Pretreatment (Including Degreasing, Water
washing) → Chromizing → Drying → Re-direction → Topside roller-coating
→ Curing oven → Cooling → Tension machine → Recoiler → Coil
discharging

3. Main devices list
Name Quantity
Coil loading device 1
Sewing table 1
Pretreatment line 1
Drying device 1
Coater 1
Curing Oven 1
Heating system 3
Air cooling devices 1
3-rollers cooling device 1
Tension device 1
Recoil machine 1
Electrical system 1
*Optional configuration: waste gas treatment and energy recycle system.

4. Water and power consumption of coating line
Total power consumption: 50KW
Compressed air: Min5.5bar，1Nm3/min，actual consumption 0.5Nm3/min
Water: Deionized water, supply quantity is about 4T/h
Heating fuel: LPG or LNG
LPG consumption: 0.2 CBM/min
LNG consumption: 0.5 CBM/min
5. The coating line design and manufacture leads 90 days, installation and
testing leads 60 days.
6.Trade terms: FOB, CIF are available
7.Payment terms: T/T, D/P, LC are acceptable
8. Packing style: Wooden pallet
9. Transportation: by sea
