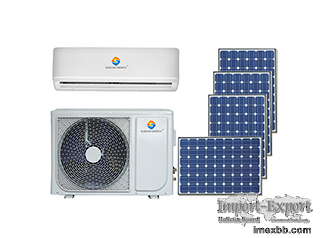

ACDC Hybrid Solar Air Conditioner ( On Grid Working )

Convenient and quick installation, no longer require a solar controller,
battery, and inverter.

Hybrid Solar Air Conditioner Overview
Cooling capacity 9000BTU/12000BTU/18000BTU/24000BTUInside building digital
calculator to priority biggest using DC power, auto balance 220V city grid
power. DC input range is DC50V~DC300V, so can connect max around 1500W solar
PV panel Max consumption 90% solar DC power.
This solar thermal hybrid aircon no need battery, install take small place, so
for the end user whole system running cost is very low.
When night, it can same as normal inverter air conditioner by city power 220V.

Acdc Hybrid Solar Air Conditioner ( On Grid Working )

ACDC On-grid solar split air conditioner wall split type, the power from solar
panel priority supply directly to indoor&outdoor fan motor and compressor. When
the solar power is not sufficient, by equipped with dual PV MPPT tracking
system, the system automatically switches to run by grid power, thus achieved
the AC/DC power supply interaction, and uninterrupted supply power to air
conditioner, ensure the system high efficiency up to SEER36, high quality with
3-5 years warranty, convenient installation, wide voltage design, free
combination of solar panels.

The air conditioner directly connects solar PV panel to AC unit by MC4 solar
connectors, others like normal split air conditioners.

System Advantages:

1.AC/DC dual power supply

2.Hight energy efficiency: maximum up to SEER 36; Even if there is no sunshine
up to SEER 21

3. Convenient and quick installation, no longer require a solar controller,
battery, and inverter

4.Using solar power priority, solar power utilization rate of more than 91%

5. Solar power/grid power supply interaction, achieve uninterrupted power
supply

6.Wide voltage design, free combination of solar panels, not limited by
installation place

7.Compliant to all climate condition, (T1&T3)

ACDC Hybrid Solar Air Conditioner ( On Grid Working )

The greatest advantage of ACDC Hybrid Solar Air Conditioner is that people need
cooling most when the sun is the heaviest, and the more the solar energy is,
the easier collecting a lot of energy and make use of will be.

How can big room your hybrid solar ac air conditioner unit heat/cool?

9000btu up to 18 sq.mt
12000btu up to 23 sq.mt
18000btu up to 35 sq.mt
24000btu up to 47 sq.mt


How many solar panels do I need to run your ACDC unit?
ACDC09-----solar PV panel 200W*4PCS
ACDC12-----solar PV panel 250W*4PCS
ACDC18-----solar PV panel 300W*4PCS
ACDC24-----solar PV panel 300W*5PCS

 Hybrid Solar Air Conditioning System Specification
Specification of Wall-mounted  , Type
Model ACDC09-SBP ACDC12-SBP ACDC18-SBP ACDC24-SBP
Power supply PH-V-HZ 1Ph, 220-240V～, 50/60Hz 1Ph, 220-240V
～, 50/60Hz 1Ph, 220-240V～, 50/60Hz 1Ph, 220-240V～, 50/60Hz
V DC50-380V DC50-380V DC50-380V DC50-380V
Cooling Capacity                      Btu/h 9000（3500-
11000） 12000（3700-14000） 18000（6200-19500） 24000（5100-26900）
Input         W 590（100-1200） 865（110-1500） 1320
（140-1800） 1980（240-3030）
Rated current    A 2.68（0.45-5.45） 3.93（0.5-
6.82） 6（0.6-8.18） 9（1.0-13.2）
Heating Capacity                      Btu/h 9500（3800-
11500） 13000（4000-15000） 19000（4700-20000） 25000（5500-30000）
Input         W 625（120-1200） 880（130-1510） 1465
（200-1900） 2050（260-3140）
Rated current    A 2.84（0.5-5.45） 4（0.59-6.86）
6.66（0.9-8.63） 9.32（1.1-13.7）
Indoor air flow (Hi/Mi/Lo , ) m3/h  559/454/366  559/454/366
721/566/458 970/780/590
Indoor noise level (Hi/Mi/Lo) dB(A) 41.5/37.1/32.7 41.5/37.1/32.7
43.7/39.3/35.1 45/36/31.5
Indoor unit Dimension(W*D*H) mm 850x185x290 850x185x290
957x213x302  1040×220×327
Packing   (W*D*H) mm 950x290x385 950x290x385
1035x305x380 1120x310x405
Net/Gross weight   Kg 8.2/10.4 8.2/10.4
9.5/12.5 11.9/15.2
Outdoor noise level         dB(A) ＜50 ＜50 ＜52 ≤56
Outdoor unit Dimension(W*D*H) mm 835*320*540 835*320*540
835*320*540 910*340*700
Packing  (W*D*H) mm 900*400*600 900*400*600
900*400*600 1063*457*780
Net/Gross weight   Kg 33/39 35/40 39/44 56/62
Operation temp              ,   ℃ 17℃~30℃
17℃~30℃ 17℃~30℃ 17℃~30℃
Ambient temp (cooling/heating) ℃ 18-52/-15-34 18-52/-15-34
18-52/-15-34 18-52/-15-34
Application area
