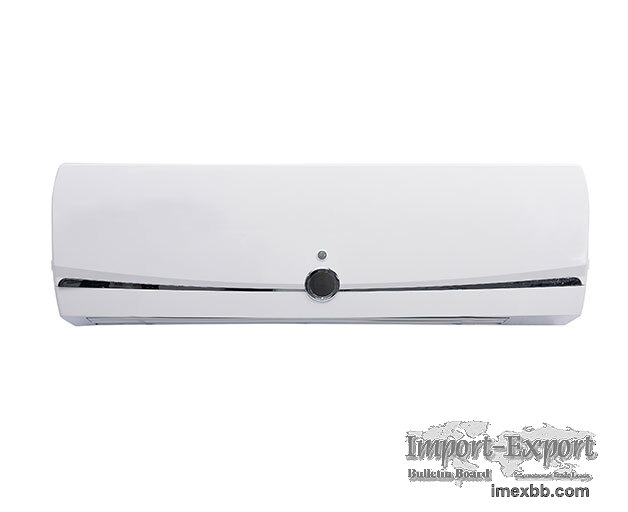

100% SOLAR POWERED AIR CONDITIONER

Specs of 100% Solar Powered Air Conditioner
DC solar power input

Power consumption saving

High cooling efficiency

Technic Data of 100% Solar Powered Air Conditioner
Model TKF-26GW/DC TKFR-35GW/DC TKFR-50GW/DC TKFR-60GW/DC TKF-
72GW/DC
1HP 1.5HP 2HP 2.5HP 3HP
0.75ton 1ton 1.5ton 1.8ton 2ton
Cooling Capacity 2600w/9000btu 3500w/12000btu 5200w/18000btu
6000w/20000btu 7200w/24000btu
Heating Capacity 2800w/10000btu 3700w/13000btu 6000w/20000btu
7000w/24000btu 7900w/27000btu
Input Voltage(V) 48v 48v 48v 48v 48v
Rated Current(A) 9.5 16 22 24 24
Noise-Indoor-dB(A) ≤40 ≤42 ≤43 ≤45 ≤50
Noise-Outdoor-dB(A) ≤50 ≤52 ≤54 ≤56 ≤58
Air Circulation(M3/H) 450 550 650 850 850
Suitable Area(M2) 10~15 12~25 20~30 26~42 30~48
EER-W/W 4.56 4.67 4.73 4.66 4.67
EER-Btu/h/w 15.79 16 16.36 16.67 16
Indoor Unit N.W./G.W.(kgs) 11/13 13/15 15/17 16/18 16/18
Outdoor Unit N.W./G.W.(kgs) 38/40 45/48 48/52 48/53 48/53
Indoor Unit Net(mm) 745*255*195 775*260*210 1070*385*265
1070*385*265 1070*385*265
Indoor Unit Shipping(mm) 780*240*305 840*325*265 1100*400*285
1100*400*285 1100*400*285
Outdoor Unit Net(mm) 645*245*495 790*260*540 850*290*580
850*290*580 850*290*580
Outdoor Unit Shipping(mm) 725*320*540 910*370*610 995*390*650
995*390*650 995*390*650
Loading Quantity 40HQ 225pcs 225pcs 175pcs 175pcs 125pcs
Solar parts price Solar panel 600W                 Battery
250AH                Controller 30A: Solar panel 900W
         Battery 400AH                 Controller 30A
Solar panel 1200W                Battery 600AH
  Controller 30A Solar panel 1200W                Battery
600AH                   Controller 30A Solar panel 1800W
              Battery 800AH                Controller 30A

Zonkia is a professional medical laboratory equipment suppliers, we provide
solar powered air conditioner, solar air conditioner for sale and etc. Want
to know solar air conditioner price or more? Please contact us.
