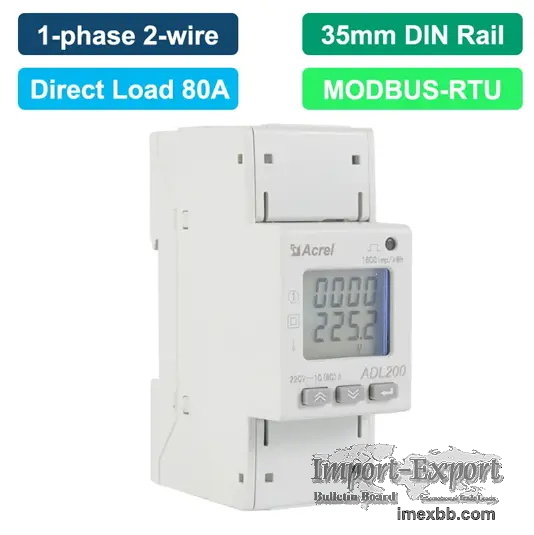

ACREL ADL200 SINGLE PHASE ELECTRIC METER WITH MODBUS

Single-phase electronic energy meter Acrel ADL200 is mainly used to measure
single-phase active energy of low-voltage network, and can measure voltage,
current, power and other electric quantities at the same time, and can be
equipped with RS485 communication function, which is convenient for users to
monitor, collect and manage electricity consumption. It can be flexibly
installed in the distribution box to realize sub-item electric energy
measurement, statistics and analysis for different areas and different loads.

Specification of ADL200 Single Phase Power Meter Modbus With Modbus
Input voltage Reference voltage AC 220V
Reference frequency 50Hz
Power consumption <10VA
Input current Basic current 10A
Maximum current 80A
Starting current 4‰Ib
Consumption <4VA
Measurement performance Accuracy of measuring 1 class
Range of measuring 000000.00~99999999kWh
Clock accuracy Error≤0.5s/d
Active pulse Pulse width 80±20ms
Pulse constant 1000imp/kWh
Communication Interface RS485(A+、B-)
Connection mode Shielded twisted pair conductors
Protocol MODBUS-RTU

Features of ADL200 Single Phase Electric Power Meter China With Modbus
01
The product has the advantages of high precision, small size and convenient
installation;

02
It can integrate common power parameter measurement and power measurement and
assessment management, and provide various power data statistics for the last
48 months;

03
It has 2~31 sub-harmonic and total harmonic content detection;

04
It has RS485 communication interface, which can choose MODBUS-RTU or DL/T645
protocol.

Minimum Order: 1 pieces
