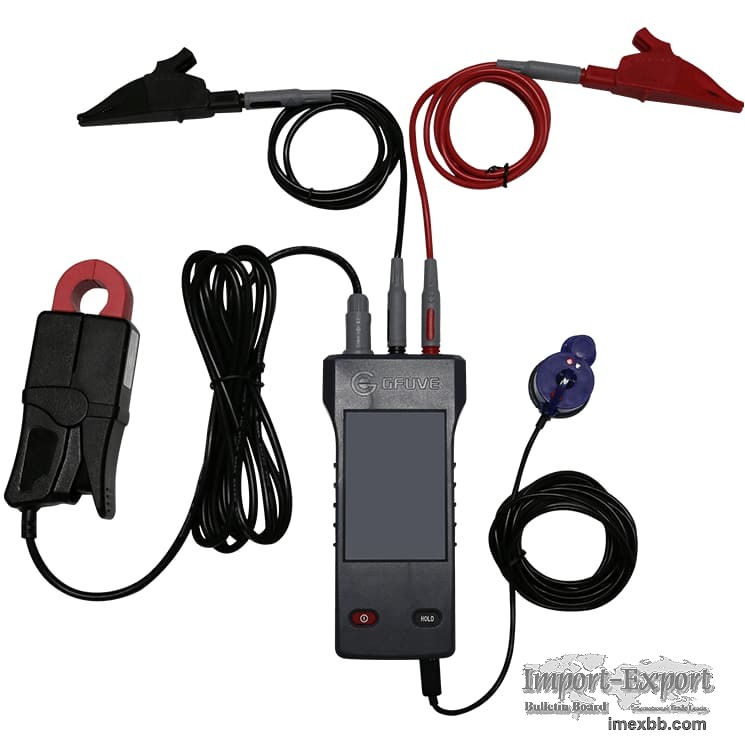

Single phase energy meter calibrator GF112V2 GFUVE, metrology handheld AC

GF112V2 made in GFUVE GROUP, is a high precision single phase handheld energy
meter accuracy tester in class 0.1, used for testing all kinds of single phase
electronic meters error on site. Wide measurement range from 1mA to 200A and 0 to
600V, frequency range 40.000Hz to 70.000Hz, and also can be used to test
alternating current electrical parameters - voltage, current, active power,
reactive power, apparent power, harmonics, phase angle, power factor, frequency,
energy etc. It can display U & I wave form and vector diagram. Small size, light
weight, simple and convenient operation. It is an ideal testing equipment for the
metrology departments of electricity power companies and electrical service
engineers.

Specification
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF112V2
Accuracy class: 0.1%
Power supply: AAA type, Li rechargeable battery, 2700mAh, 3.6V
warm-up: <2 min
Voltage and current range: 600V/1000A
Clamp on cts diameter: 8mm, 13mm, 18mm, 20mm, 30mm, 50mm, 120mm optional
Pulse input level: 5V
Data storage: 5000 sets
Communication port: USB & Bluetooth port
Isolation protection: IEC 61010-1:2001
Measurement Category: 600V CAT III
Degree of protection: IP54
Display: 3.5 inch touch TFT color LCD

Minimum Order: 1 sets
