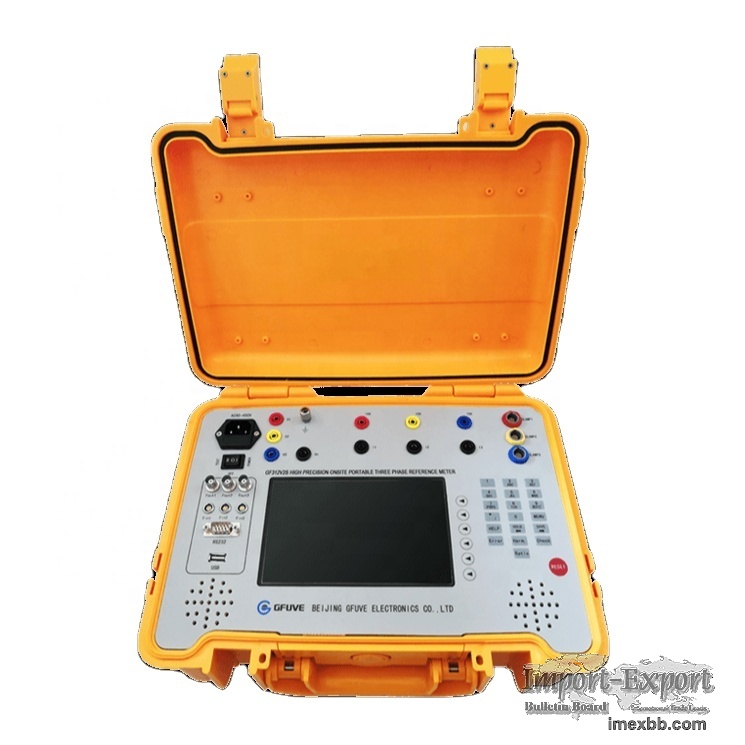

Three phase electronic meter calibrator GF312V2S GFUVE, Portable high preci

GF312V2S portable three phase reference meter on-site is the newest product
produced by our company by widely visiting users and referring to the advantages
of the same kind of products home and abroad. The measured part of the product
adopts high speed 24bit A/D transmission to send DSP to conduct digital
processing, unique power compensation algorithm with patented technology, which
largely improves measured degree of accuracy and stability. Central processing
part adopts 32-bit ARM embedded technology to make instrument interface novel,
function abundant, operation distinct and easy, and performance steady. Class of
accuracy: Class 0.02 or 0.05, range from 3×12A/3×600V or 3×120A/3×600V, with
comfort portable design and light weight. The model GF312V2S portable reference
meter is suit for electricity power utilities metrogical departments, Industrial
and mining enterprises departments and electric lab to field use.

Specification
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF312V2S
Accuracy: 0.02%, 0.05%, 0.1%
Power supply: External power ;Phase voltage supply; Li-Battery supply
Voltage range: 0-600V
Voltage error: ±0.05%; ±0.02%
Current measurement range: 1mA-12A or 1mA-120A(direct connection
Active energy error: ±0.05% or ±0.02%
Reactive energy error: ±0.1% or ±0.05%
Active energy error (CT): ±0.1% (1mA-120A)
Reactive energy error (CT): ±0.2% (5mA-120A)
Weight: 4.5 kg

Minimum Order: 1 sets
