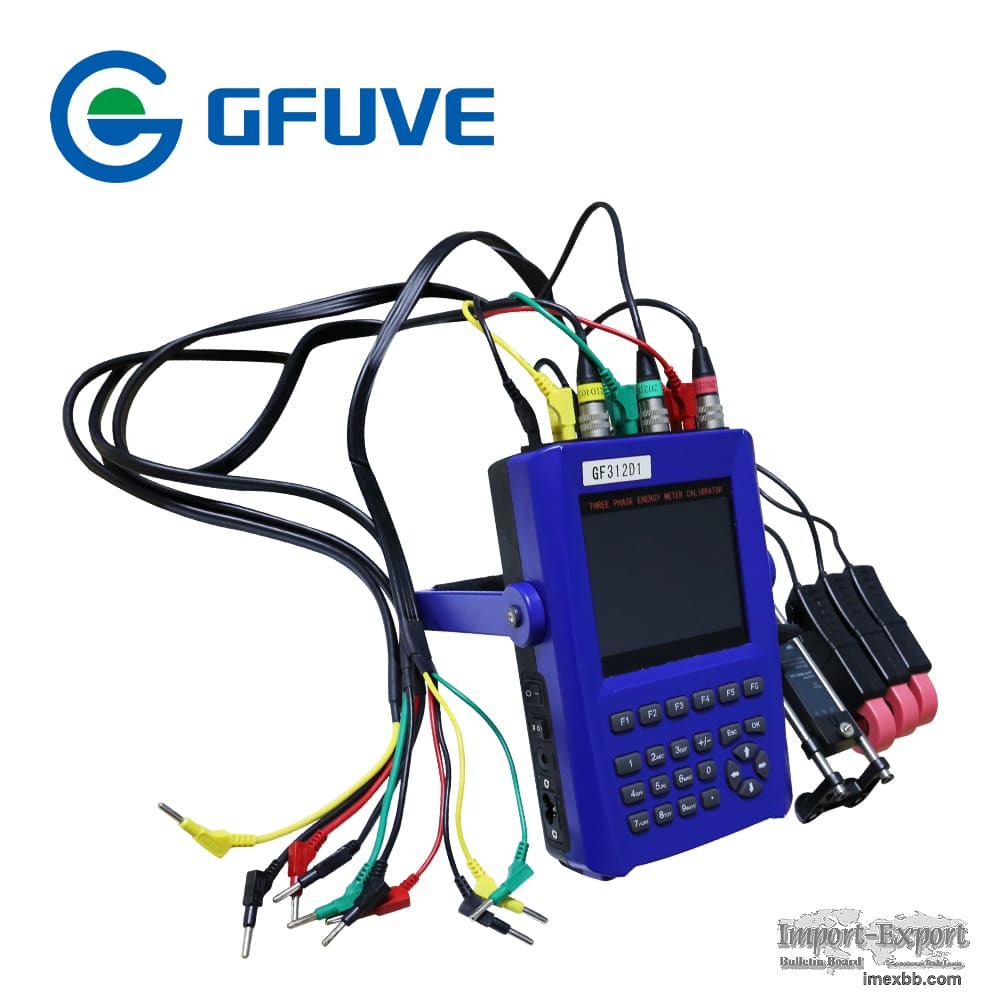

GFuve Handheld 3-phase electronics meter calibrator GF312D1 test set

The instrument GF312D1 is a precision 0.05% AC energy meter testing instrument,
mainly used to test three phase energy meter error on site, measure all various of
AC parameters and CT ratio & phase error, it is also as three phase reference
energy meter in the laboratory. Mainly using test single phase or three phase
meter error on site. GF312D1 energy meter calibrator is an ideal test tool for the
metrological service of electricity power company.

Specification
Warranty: 3 years
Power: Electronic
Other attributes
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF312D1
Accuracy: 0.05%, 0.1%, 0.2%
Power supply: 220V; Li-polymer battery; Power line supply
Test voltage range: 0-480V(0-830V)
Test current range: 0-12A
Active energy error: ±0.05% (0.1A-12A);±0.1% (0.01A-0.1A)
Reactive energy error: ±0.1% (0.1A-12A)
Active power error: ±0.05% (0.1A-12A);±0.1% (0.01A-0.1A)
Reactive power error: ±0.1% (0.1A-12A)
Dimension: 245x162x60 mm
Weight: 1.6 kg

Minimum Order: 1 sets
