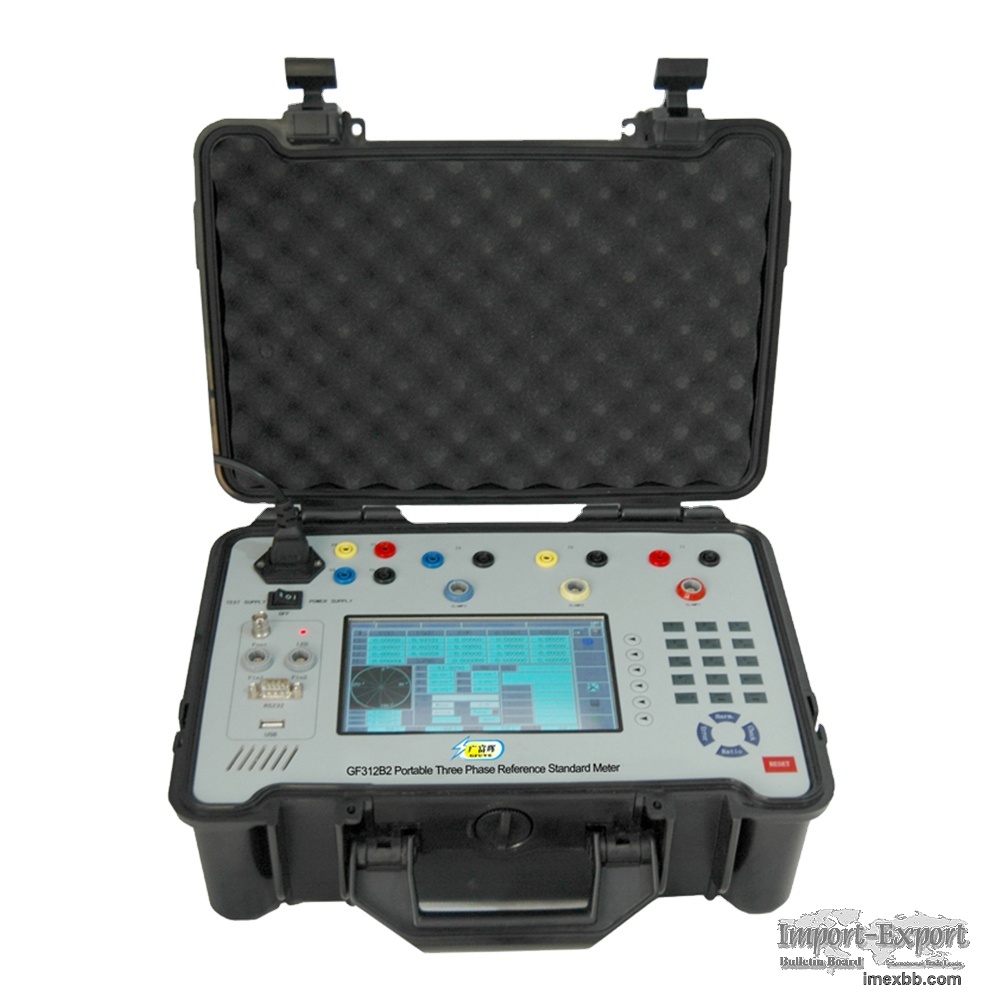

PORTABLE THREE PHASE REFERENCE METER GF312B2 GFUVE calibrator tester Watt

GF312B2 portable three phase reference meter high accuracy 0.02%, with all kinds
of optional clamp on ct and smart optical sampler. It can be applied in electrical
laboratory or on site. it will be ensured by a combination of measures such as the
use of 24bit A/D converter, DSP+32 bit ARM technology, a widely measuring range
600V/120A, adapted to typical test points of most recognized national metrological
institutes. It can be as high precision three phase reference energy meter, also
three phase portable meter calibrator, test ct pt ratio, burden etc.

Specification
Warranty: 3 years
Power: Electronic
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF312B2
Accuracy: 0.02% , 0.05%
Power supply: 40-450V, 50/60Hz±2Hz
Voltage range: 0.04-600V
Voltage error: ±0.02% (30V-600V) ±0.05% (0.1V-30V)
Voltage resolution: 0.001V
Active power error: ±0.02% (0.1A-120A); ±0.05% (0.02A-0.1A)
Reactive power error: ±0.05% (0.01A-120A)
Active energy error: ±0.02% (0.1A-120A); ±0.05% (0.02A-0.1A)
Reactive energy error: ±0.05% (0.01A-120A)
Weight: 4 kg

Minimum Order: 1 sets
