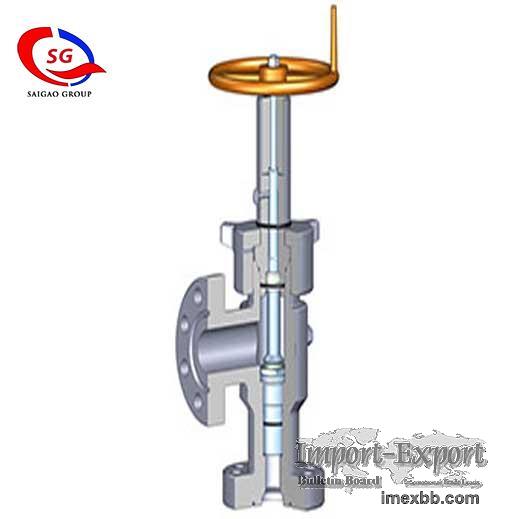

Adjustable Choke Valve

Adjustable Choke Valve has forged steel valve body, which is characterized as
high pressure resistance and erosion resistance. It can be operated manually.
The structure is simple and maintenance is low. It is equipped with serialized
and standard choke aperture.
Features of Adjustable Choke Valve:
The control parts of cemented carbide are more resistant to erosion than
ordinary materials and have a long service life; they can be designed as double
flanges, threads or connected by 壬 according to user needs; easy to maintain,
it is easier to replace damaged pressure control parts in the field; High
degree, interchangeable with JLG fixed throttle trimmers produced by Kunshi,
with flexible strain capability; stem seal design covers all pressure levels,
temperature range and wellhead and manifold environment All fluid environments
are available; to ensure safety, the H2 adjustable throttle valve has a
pressure relief device on the valve body that allows the pressure control to be
replaced on the pipe.

Technical Specification of Adjustable Choke Valve:
Nominal Bore：2-1/16"~4-1/16"

Working Pressure：2000psi~15000 psi

Temperature Level: (–60° C ~ +121° C)

Body Material: AA、BB、CC、DD、EE、FF、HH

Specificat , ion Level: PSL1~PSL3G

Performance Level: PR1~PR2

Nozzle Specifications: 1"~3"

SAIGAO GROUP is one of the professional adjustable choke valve manufacturers
and adjustable choke valve suppliers,we have oilfield cementing tools,contact
us now.

Minimum Order: 1 sets
