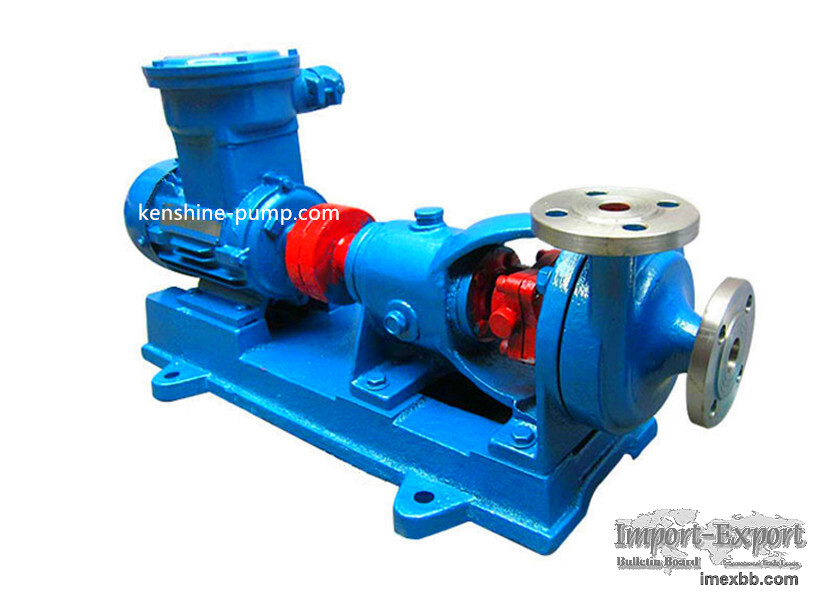

AFB,FB Stainless Steel Chemical Transfer Pump

FB and AFB stainless steel corrosion resistant centrifugal pump FB stainless steel
corrosion resistant pump is suitable for the corrosive liquids without solid
particle and the liquid temperature is from -20 to 120 degree Celsius, inlet
pressure is not more than 2kg per cm2 - AFB stainless steel corrosion resistant
centrifugal pump is improved on the base of FB corrosion resistant pump.

AFB Stainless steel corrosion resistant pump adopts new auxiliary impeller and
shaft sealing device.

AFB stainless steel pump has the advanced hydraulic model, novel structure and high
strength combination double end face mechanical seal, which has the advantages of
high energy saving, compact structure, stable performance and reliable use.

It is a single stage single suction cantilever corrosion resistant centrifugal
pump.

The pump and the delivery medium contact part of the flow parts, are made of
1Cr18Ni9Ti material(stainless steel).

AFB Stainless steel corrosion resistant pump is used to convey the corrosive
liquids without solid .

The liquids temperature is from -20 to 120 degree Celsius.

Pump inlet pressure is not more than 2kg per cm2 - When the pump is equipped with
double end face seal and cooling device, the pump can transport the corrosive
liquids with the temperature up 300 degree Celsius.

FB and AFB stainless steel corrosion resistant centrifugal pump [FB and AFB
stainless steel corrosion resistant centrifugal pump] technical parameters: Flow
rate: 3.6 to 200m3/h; Head: 15 to 64m; Speed: 2900r/min; Power: 0.75 to 55KW; Inlet
diameter: 25 to 150mm; Maximum working pressure: 2.0Mpa.

FB and AFB stainless steel corrosion resistant centrifugal pump FB, AFB stainless
steel corrosion resistant centrifugal pump is widely used in chemical industry,
petroleum, metallurgy, light industry, synthetic fiber, environmental protection,
food, medicine and other sectors.

The pump uses double end face mechanical seal in order to improve product quality
and reduce run, run, drip, leak and prevent pollution.

It has the advantages of stable and reliable performance, good sealing performance,
beautiful shape and convenient maintenance

Minimum Order: 1 sets
