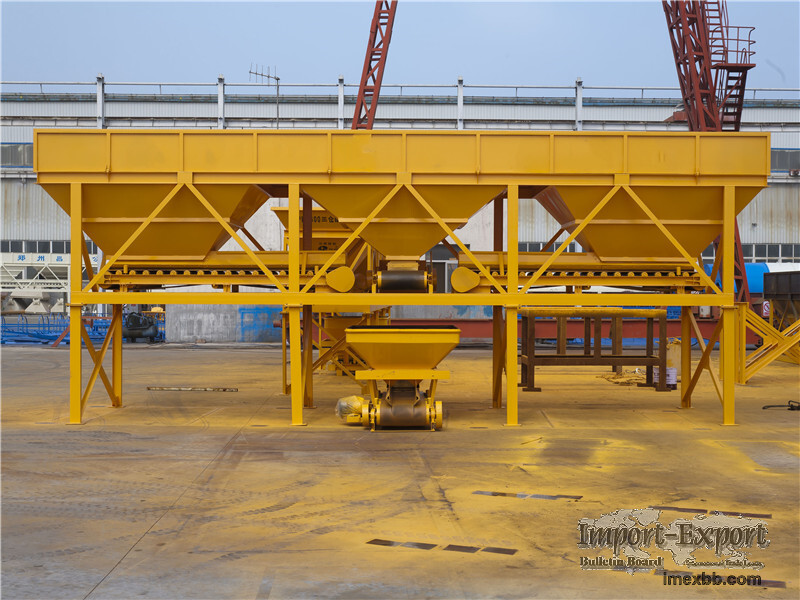

Aggregate batching machine

Aggregate batching machine is a key part of concrete batching plant. It is used
to weigh aggregates.
As per the formula of different concrete, some use 2 kinds of aggregate, some
use 3 kinds of aggregate and some use 4 kinds of aggregate. Concrete that use 3
or 4 kinds of aggregate are very common. Accordingly, aggregate batching
machines that have 3 or 4 aggregate storage bins are commonly used.
According to the weighing method, we have accumulative weighing aggregate
batching machine and independent weighing aggregate batching machine. For
accumulative weighing aggregate batching machine, there are also two different
types: belt weighing type and hopper weighing type.
1）Accumulative weighing aggregate batching machine
There is only one scale on the accumulative weighing aggregate batching
machine. Different kinds of aggregate must use the same scale to be weighed one
by one. If the scale is a hopper, we call it hopper type accumulative weighing
aggregate batching machine; while if the scale is a belt conveyor, we call it
belt type accumulative weighing aggregate batching machine.
