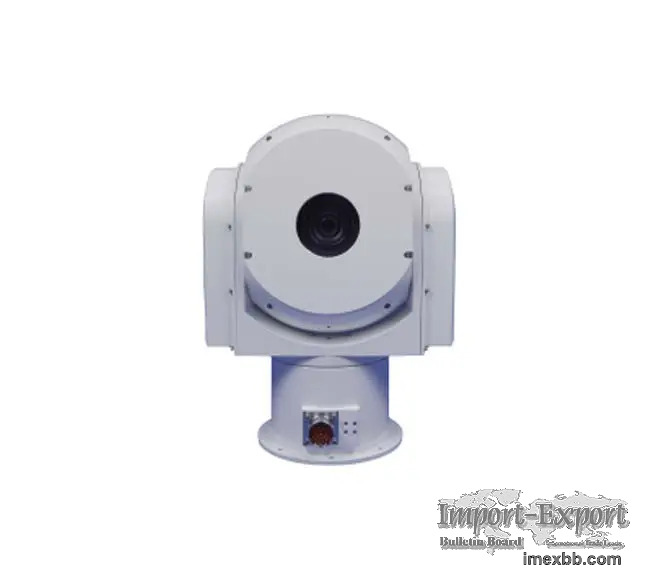

Airborne Surveillance System TAG640-C129T75-L

Power line inspection, targeting, search and rescue, anti-smuggling, evidence
gathering, security, environment inspection, preventing forest fires,
navigation help, etc. are all applications for this technology. This series is
made for manned and unmanned medium to large drones, airships, and other
vessels or vehicles used in aviation and maritime operations.

Specifications of Airborne Surveillance Cameras TAG640-C129T75-L
Visible Camera
Detector 1/2.8 inches
Lens 30×(4.3~129mm) optical zoom
Resolution 1080（1920X1080）
IR camera
Detector Uncooled LWIR detector
Resolution 640×512
Focal length 75mm fixed
Laser Sensor (Eye-safe Laser class-Ⅰ)
Laser Ranging Maximum distance 3km/5km (optional), Accuracy：±5m
Gyro-stabilized PT
Accuracy 0.3mrad（1σ ）
Azimuth Range Nx360°
Elevation Range -30°~+ 90°
El angular Velocity ≥80°/s
Az angular Velocity ≥80°/s
El angular Acceleration ≥200°/s²
Az angular Acceleration ≥200°/s²
Electrical interface
Video Output HD-SDI/ Network HD video（optional）
Communication RS422/Network Interface
Power
External Power 20~30V DC
Power Consumption ≤60W, peak≤180W
Environmental
Operating Temp -20℃～+65℃/-40℃～+65℃
Storage Temp -40℃～+85℃
Image Tracking
Integration Built-in
Function HD Auto Tracking /Auto Target Recognition（optional）
General
Weight ≤8Kg
Dimension Φ220mm×340mm

Features of Airborne System TAG640-C129T75-L
Combination of multiple optical sensors (IR, laser, video, and photo)

High-precision platform with gyro stabilization

Add HD Auto Tracking
