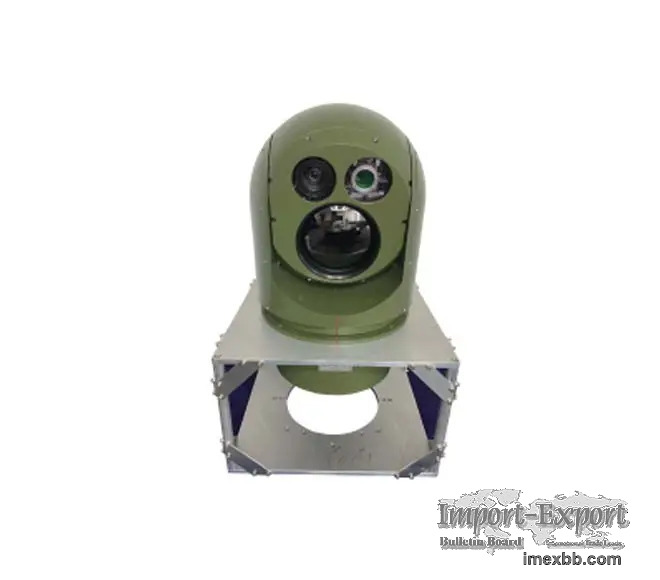

Airborne Surveillance System TAG640-C300T120-L5

Suitable for targeting, search and rescue, anti-smuggling, evidence gathering,
security, environment inspection, preventing forest fires, navigation help,
etc. The SCA200 Series is made to be equipped on a variety of medium to large
manned and unmanned airships, drones, and other ships or vehicles used in
aviation and maritime operations.

Specifications of Airborne System TAG640-C300T120-L5
Visible Camera
Detector 1/1.8 inches
Lens 38×(8mm-300mm) optical zoom
Resolution 1080P（1920X1080）
IR camera
Detector Uncooled LWIR detector
Resolution 640×512
Focal length 30-120mm continuous zoom
Laser Sensor (Eye-safe Laser Class-Ⅰ)
Laser Ranging Distance ≥5Km, Accuracy ±5m
Gyro-stabilized PT
Accuracy ≤0.3mrad（1σ）
Azimuth Range Nx360°
Elevation Range -90°~+30°
El angular Velocity ≥80°/s
Az angular Velocity ≥80°/s
El angular Acceleration ≥200°/s²
Az angular Acceleration ≥200°/s²
Interface
Video Output HD-SDI
Control RS422
Power
External Power 20~30V DC
Power Consumption ≤180W, peak≤400W
Environmental
Operating Temp -20℃～+65℃/-40℃～+65℃
Storage Temp -40℃～+85℃
Image Tracking
Integration Built-in
Function HD Auto Tracking /Auto Target Recognition（optional）
General
Weight ≤20kg
Dimension Φ280mm×430mm

Features of Airborne System TAG640-C300T120-L5
Multi-optical sensors combination

High-accuracy gyro-stabilized platform

Integrate HD Auto Tracking

Now the price of electro-optical targeting system is reasonable, if you have
needs, please contact us.
