LWIR Electro Optical UAV Sensor Payload For Vehicle Identification

10X Mutiple Sensor Electtro Optic System With Hunman And Vehicle Identification And
Detection

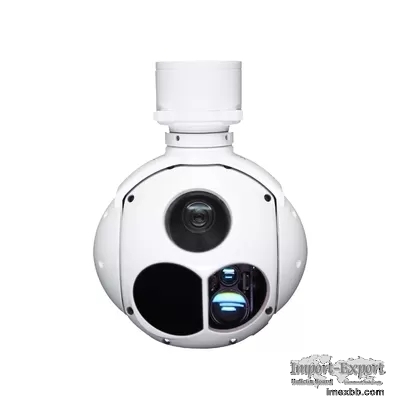

TS01G is super light with three sensor two- axis electro optical surveilliance
system,with 30X HD zoom camera, un-cooled longwave infrared(LWIR) sensor and 3km
laser rangefinder, mainly used in airborne imaging detection, recognitiontracking,
etc, meet the needs of mapping, surveillance, laser ranging application scenarios.

EOsensor: PEOPLE:Detection 2km;Recognition 0.7km VEHICLE:Detection 5km;Recognition
2.7km

IR sensor: PEOPLE:Detection 0.7km;Recognition 0.2km VEHICLE:Detection
4.2km;Recognition 1km

Laser ranging distance: 3km



Functions



1. Provide the visible video and image for detection area

2. High precision visual axis stabilization function

3. With the capability of detection and recognition for ground target

4. Support search, tracking, lock, guiding, etc working ways

5. With character overlay, custom and display functions

6. with target-position and laser randing functions

7. With self - check and fault diagnosis function





Specifications



EO sensor Wavelength 0.4μm～0.9μm
Resolution 1920x1080
Focal length 3.3mm～33mm(10X)
FOV 58.2°～6.9°
Video output Ethernet
Distance PEOPLE:Detection 2km;Recognition 0.7km VEHICLE:Detection
5km;Recognition 2.7km
IR sensor IR Type LWIR(un-cooled)
Wavelength 8～14μm
Resolution 640x512
Pixel 12um
NETD 50mk
Focus length 25mm/F1.0
FOV 17.4º×14º
Distance PEOPLE:Detection 0.7km; Recognition 0.2km
VEHICLE:Detection 4.2km; Recognition 1km
Servo System Rotating limits 360º continuous Pan, Pitch: -110° ~+10 º
Angular accuracy: ≤2mrad
Stablization accuracy ≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
Max.angular speed ≥50°/s
Max. angular acceleration: ≥90°/S
Laser rangefinder Wavelength 1535nm
Performance 3km
Ranging distance 50~3000m
Ranging accuracy ±1
Tracking Functions Motion speed: 30pixel/frame
Target imaging contrast: 8%
Target imaging pixel(Mini) 4x3 pixels
Support Anti -occlusion without loss of function
Interface Communication
interface RS422 x1(TTL Optional)
Video output Ethernet


Mechanical Drawing

LWIR Electro Optical UAV Sensor Payload For Vehicle Identification 0

LWIR Electro Optical UAV Sensor Payload For Vehicle Identification 1
