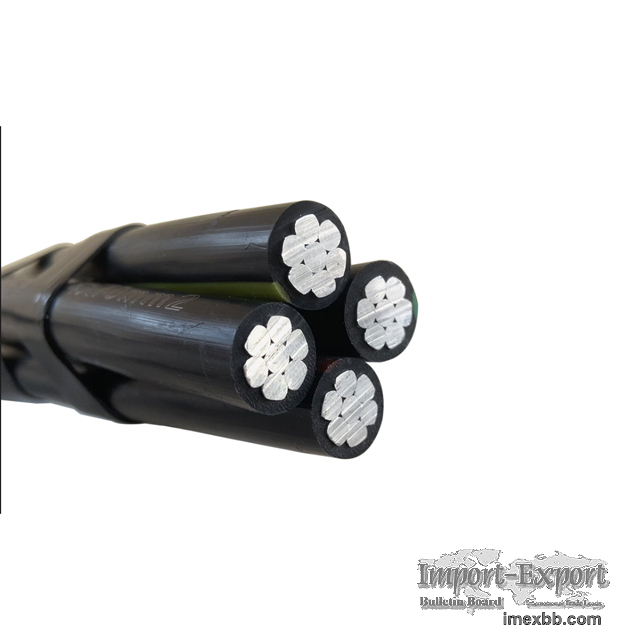

ASCR Conductor/AAC / AAAC / ACCC ABC aerial bundled electrical cable

ABC cables primarily used for 120 volt overhead service applications such as
street lighting.outdoor lighting.and temporary service for construction. To be
used at voltage of 600 volts phase- to -phase or less and at conductor
temperatures not to exceed 75C for polyethylene insulated conductors or 90'C
for crosslinked polyethylene(XLPE) insulated conductors.

Duplex aluminium overhead cables have two conductors: one for electrodes, and
the other one as a messenger (neutral conductor). This electrical wire, also
called duplex overhead aluminum wire, is designed and manufactured for use in
120 V power distribution facilities. It is aerially installed with a maximum
operational temperature rating of 75°C.

Conductors:
Duplex aluminium overhead cables have a concentric strand or compressed 1350-
H19 series aluminum conductor.
Messenger:
Duplex overhead aluminum wire has a bare ACSR messenger. Optional constructions
include a messenger of AAC or 6201 alloy.

Insulation:
Cables with duplex overhead service drop conductors have a black cross linked
polyethylene ( XLP) insulation.

https://www.cncablesuppliers.co , m

Minimum Order: 100 metres
