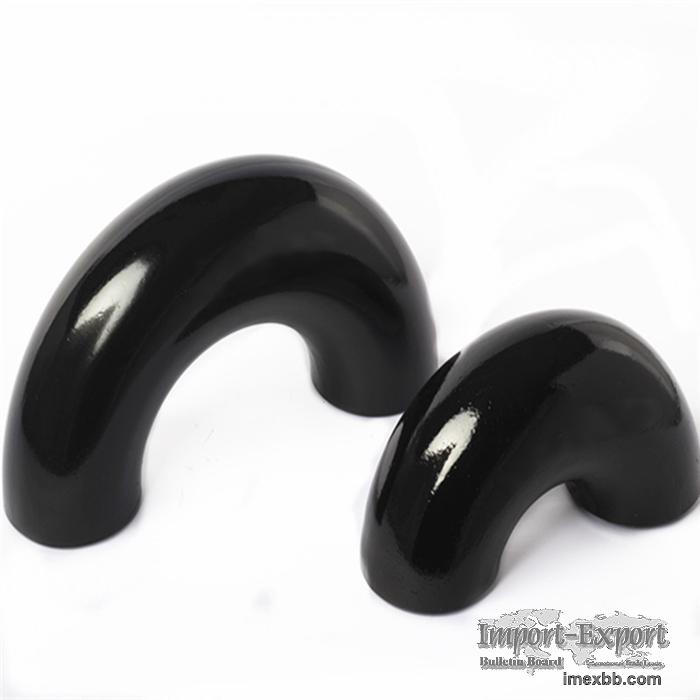

ASME B16.11 Forged Steel Fittings Manufacturer supplier China Factory

ASME B16.11 Forged Steel Fittings – High-Pressure Socket Weld & Threaded Pipe
Fittings Solutions Supplier

ASME B16.11 is the standard for forged steel fittings, including socket weld
and threaded types. Materials include carbon steel, alloy steel, and stainless
steel.
Also described as Class 2000, 3000, 6000 threaded end fittings and Class 3000,
6000, and 9000 for socket weld end fittings.

Key Specifications & Ratings
The ASME B16.11 standard categorizes forged fittings into specific pressure-
temperature ratings known as “Classes.” The rating directly corresponds to
the wall thickness of the connected piping schedule.

Pressure Classes:
Threaded fittings are designated as Class 2000, 3000, and 6000. Socket-weld
fittings are designated as Class 3000, 6000, and 9000.
Pipe Schedule Matching:

Class 3000: Typically used with Schedule 80 / Extra Strong (XS) pipes.
Class 6000: Used in heavier, high-pressure Schedule 160 pipes.
Class 9000: Reserved for extremely thick Double Extra Strong (XXS) pipe walls.
Comprehensive Product Configuration
We provide the full range of forged fittings in both Socket Weld (SW) and
Threaded (NPT/BSPT) end connections:

90° & 45° Elbows: Precision-angled for smooth directional changes.

Tees & Crosses: Equal and Reducing configurations for flow distribution.

Caps: Including Hex Head, Square Head, and Round Head Plugs.

Bushings: Hex Head Bushings for seamless diameter reduction.

Street Elbows: Male-to-female threaded connections for space-restricted areas.

Technical Specifications
Pressure Ratings & Classifications
Our steel pipe fittings are categorized by their pressure-temperature ratings
to ensure safety in diverse industrial environments:

Threaded Fittings: Class 2000, 3000, and 6000.

Socket Weld Fittings: Class 3000, 6000, and 9000.

Size Range
Nominal Size: 1/8″ to 4″ (DN6 to DN100).

Wall Thickness: Corresponding to SCH 80, 160, and XXS piping systems.

Threading Standards
We utilize high-precision CNC threading to ensure leak-proof seals:

NPT (National Pipe Thread): Conforming to ASME B1.20.1.

BSPT / Din 2999: For European and Commonwealth project requirements.

Minimum Order: 5 tons
