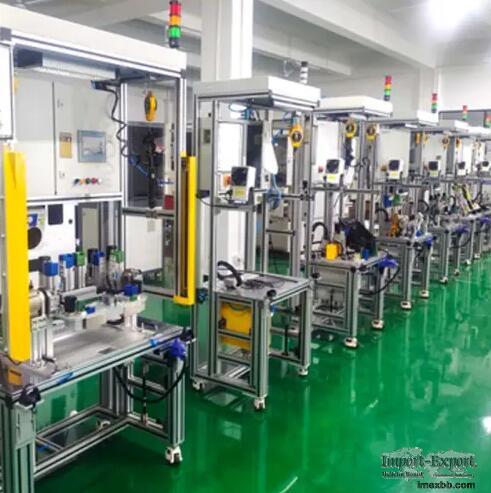

Auto Fog Lamp Assembly Line

Modern automotive fog lamp manufacturing relies on fully automated assembly
lines to achieve precision, efficiency, and stringent quality standards. These
systems integrate robotics, computer vision, and lean manufacturing principles
to produce durable, high-performance lighting components. Below is a detailed
technical breakdown of their design, operation, and benefits.
Automatic fog lamp assembly lines transform a complex, quality-critical
manufacturing process into a highly efficient, reliable, and data-driven
operation. They are indispensable for producing the safe, durable, and high-
performing fog lamps demanded by modern vehicles at competitive costs and
volumes. The high initial investment is offset by long-term gains in quality,
throughput, safety, and operational efficiency.
Typical Key Components & Process Flow:
1.  Component Feeding & Handling:
Automated feeders (vibratory bowls, magazines, pallet systems) supply
individual parts: plastic housings, reflectors, lenses, bulbs/LED modules, PCBs
(for LEDs), connectors, gaskets, screws, bezels. Robots or pick-and-place
systems precisely pick components.
2.  Sub-Assembly Stations:
PCB Assembly (for LED): Soldering LEDs, drivers, and components onto PCBs
(often done on a separate SMT line feeding into the main line).
Reflector/Housing Assembly: Placing and securing reflectors into housings,
potentially applying adhesive or using snap-fits. Lens Preparation: Cleaning,
applying adhesive (if not mechanically sealed).
3.  Main Assembly:
Lens-Housing Sealing: Precisely placing the lens onto the housing with the
gasket and applying heat, ultrasonic welding, or adhesive/curing for a
waterproof seal (critical step).
Light Source Installation: Inserting and securing halogen bulbs or mounting the
pre-assembled LED module/PCB onto the housing/reflector. Electrical Connection:
Attaching and securing wiring harnesses or connectors.
Bezel/Trim Attachment: Adding ecorative or functional exterior trim pieces.
Fastening: Automated screwdriving robots secure components.
4.  Testing & Inspection (Integrated Throughout):
Leak Testing: Submerging or using air pressure tests to ensure the seal is
watertight.
Electrical Testing: Checking circuit continuity, short circuits, bulb/LED
function, current draw.
Photometric Testing: Verifying light beam pattern, intensity, and cut-off meet
regulatory standards (SAE, ECE).
Vision Inspection: Automated cameras check for cosmetic defects (scratches,
cracks), part presence, correct assembly, adhesive bead application, and label
placement.
5.  Labeling & Traceability:
Applying barcode/RFID labels for unique identification and traceability.
Logging all test results and production data linked to each unit's ID.
6.  Packaging & Palletizing:
Automated systems place finished fog lamps into protective packaging (boxes,
foam).
Robots palletize packed units for shipment.
