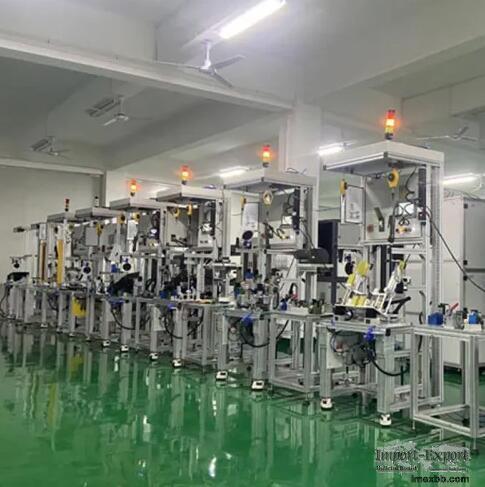

Auto Headlamp Assembly Line

An automotive headlight assembly line is a specialized production system
designed for the sequential manufacturing and assembly of vehicle headlights
and lighting components. It integrates automated machinery, precision tooling,
and quality control stations to ensure efficient, high-volume production of
headlamp units that meet strict automotive standards.
The modern automobile is a marvel of integrated systems, and lighting plays a
critical role in both safety and aesthetics. Headlights, in particular, have
evolved from simple incandescent bulbs into sophisticated assemblies
incorporating complex optics, advanced electronics (LEDs, matrix systems),
intricate reflectors or projectors, and durable housings. Manufacturing these
precision components at scale, while meeting stringent quality, safety, and
cost requirements, demands highly advanced automation. Enter the Automotive
Headlight Automatic Assembly Line – a symphony of robotics, precision
handling, vision systems, and integrated control, transforming raw materials
into the intelligent eyes of the vehicle.
1.  Housing Preparation: Housing base is cleaned, primed, and loaded. Mounting
points may be prepared.
2.  Internal Assembly: Reflector/projector units are precisely placed and
secured. LED modules or bulb sockets are installed and wired. Internal brackets
and shields are added.
3.  Electronics Integration: PCB (for control, drivers, sensors) are mounted
and connected. Wiring harnesses are routed and plugged.
4.  Sealing: A precise bead of adhesive/sealant is applied to the housing
channel.
5.  Lens Placement: The lens is robotically picked, cleaned, and precisely
placed onto the sealant. Clamping engages.
6.  Curing: The assembly passes through UV or thermal curing stations to set
the adhesive/sealant.
7.  External Components: Bezels, trim, covers, leveling motors, and aesthetic
elements are attached.
8.  Electrical Testing: Basic functionality of all lighting elements and
electronics is verified.
9.  Leak Testing: Seal integrity is confirmed.
10. Vision Inspection: Final checks for cosmetic defects, part presence, and
assembly completeness.
