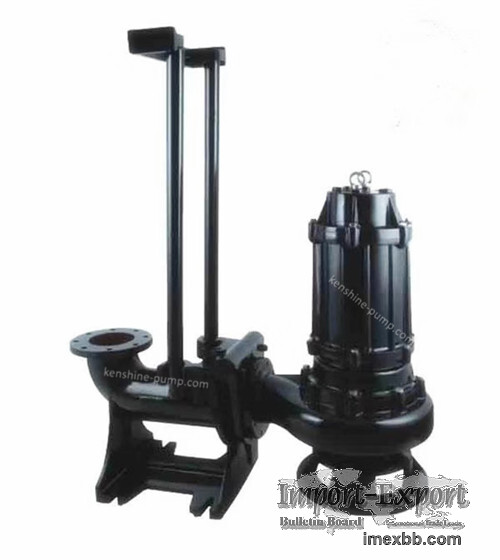

Automatic Coupled Submersible Sewage Pump

WQ Automatic coupled submersible sewage pump

The automatic coupling installation system is mainly composed of fast interface,
drainage base, guide rail, guide positioning bracket and so on.

During installation, the pump body and the fast interface are closely connected by
bolts.

The drainage base is first fixed in the pool by anchor bolts.

The fast interface drives the pump to slide down along the guide rail, and the
drainage base is automatically coupled together through the automatic-coupling
sealing surface.

After installation, the pump body and motor parts, relying on the pump body outlet
flange with the inlet flange connection, the export outlet of submersible sewage
pump and the coupling base of connection between the rubber sealing ring seal,
submersible sewage pump coupling system by hanging in the air, and using its own
weight to seal pressure, ensure reliable sealing between the pipelines.

WQ automatic coupled submersible sewage pump has the impeller of single flow
channel or double flow channel to handle the fluids with solid particle or fiber
etc.

impurity.

The pump has the advantages of non-blocking, automatic installation, automatic
control etc.

Submersible sewage pump application:

1 - Municipal works and construction sites

2 - Sewage discharge in residential areas

3 - Sewage discharge from hospitals and hotels

4 - Urban sewage treatment plant drainage system

5 - Drainage station of civil air defense system, water supply device of waterworks

6 - Discharge of seriously polluted sewage from factories and businesses

Minimum Order: 1 sets
