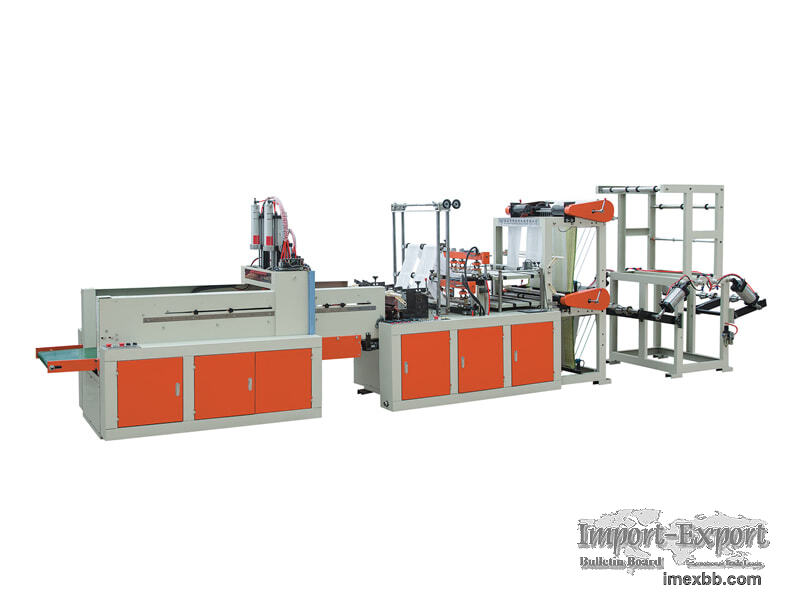

Automatic Double-Layer Four-Line T-Shirt Bag Making Machine

Double-layer, Four-line, Bottom Sealing Bag-making Machine has such functions
as photoelectric automatic tracking, microcomputer length setting, high limit
stopping, automatic counting, automatic alarm on reaching the set value, and
high compensation accuracy. With characteristics such as neat bags, little
error, and high automation of the whole machine, it is an ideal equipment for
producing blank bags, color bags, flat bags, vest bags, etc., and other various
plastic soft packaging bags.

Performance and Features
1. Fuselage structural design is streamlined.
2. No material, blocking bags automatically shut down.
3. Microcomputer control, stepper motor prop material (optional servo motor
control system)
4. The temperature error is small, bag length can be adjusted freely buttons.
5. Photoelectric tracking, stopping automatically when the label is lost.
6. Feeding, back cover, cutting, notching, conveying one time.
7. High degree of automation, good economic returns.

Use: This machine is suitable for white bags, color bags, flat bags, vest bags,
etc.

Main Technical Parameters
Model FR-DFR-650C FR-DFR-800C FR-DFR-900C FR-DFR-1000C
Max. Width 200mm*4 280mm*4 350mm*4 400mm*4
Max. length 600mm 600mm 600mm 650mm
Photocell 1 1 1 1
Cutting Thickness 0.009-0.020mm 0.009-0.020mm 0.009-0.020mm 0.009-
0.020mm
Bag Output 10-150Piece/minute*2 10-150Piece/minute*2 10-
150Piece/minute*2 10-150Piece/minute*2
Main Power 1.5kw 1.5kw 1.5kw 1.5kw
Feeding Motor 300w*4 300w*4 300w*4 300w*4
Power supply 50HZ220V+10%-15% 50HZ220V+10%-15%
50HZ220V+10%-15% 50HZ220V+10%-15%
Weight 1200kg 1250kg 1350kg 1400kg
Overall Dimensions 6500×1200×1800（mm） 6500×1400×1800（mm）
6500×1500×1800（mm） 6500×1600×1800（mm）
