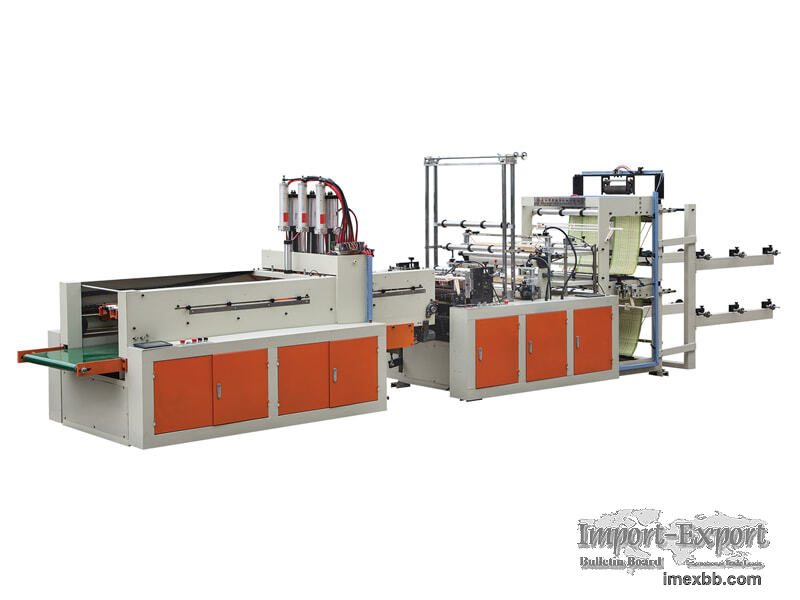

Automatic Double-Layer Six-Line T-Shirt Bag Making Machine

Double-layer, Six-line, Bottom Sealing Bag-making Machine has such functions as
photoelectric automatic tracking, microcomputer length setting, high limit
stopping, automatic counting, automatic alarm on reaching the set value, and
high compensation accuracy. With characteristics such as neat bags, little
error, and high automation of the whole machine, it is an ideal equipment for
producing blank bags, color bags, flat bags, vest bags, etc., and other various
plastic soft packaging bags.

Performance and Features
Fuselage structural design is streamlined.
No material, blocking bags automatically shut down.
Microcomputer control, stepper motor prop material (optional servo motor
control system).
The temperature error is small, bag length can be adjusted freely.
Photoelectric tracking, stopping automatically when the label is lost.
Feeding, back cover, cutting, notching, conveying all in one time.
High degree of automation, good economic returns.
Use:
This machine is suitable for white bags, color bags, flat bags, vest bags, etc.

Main Technical Parameters
Model FR-DFR-800M FR-DFR-900M FR-DFR-1000M FR-DFR-1100M
Max. Width 200mm*6 240mm*6 280mm*6 310mm*6
Max. length 600mm 600mm 600mm 600mm
Photocell 1 1 1 1
Cutting Thickness 0.009-0.025mm 0.009-0.025mm 0.009-0.025mm 0.009-
0.025mm
Bag Output 10-120 Piece/minute*2 10-120 Piece/minute*2 10-
120 Piece/minute*2 10-120 Piece/minute*2
Main Power 1.5kw 1.5kw 1.5kw 1.5kw
Feeding Motor 1.5kw 1.5kw 1.5kw 1.5kw
Power supply 50HZ220V+10%-15% 50HZ220V+10%-15%
50HZ220V+10%-15% 50HZ220V+10%-15%
Weight 1200kg 1200kg 1300kg 1300kg
Overall Dimensions 7000×1400×1800（mm） 7000×1500×1800（mm）
7000×1600×1800（mm） 7000×1700×1800（mm）

Our company is dedicated to providing high-quality bag making machines, with a
particular focus on plastic bag production machines. We understand the diverse
needs of the market and provide advanced solutions to ensure that the various
needs of our customers are met efficiently and stably.
