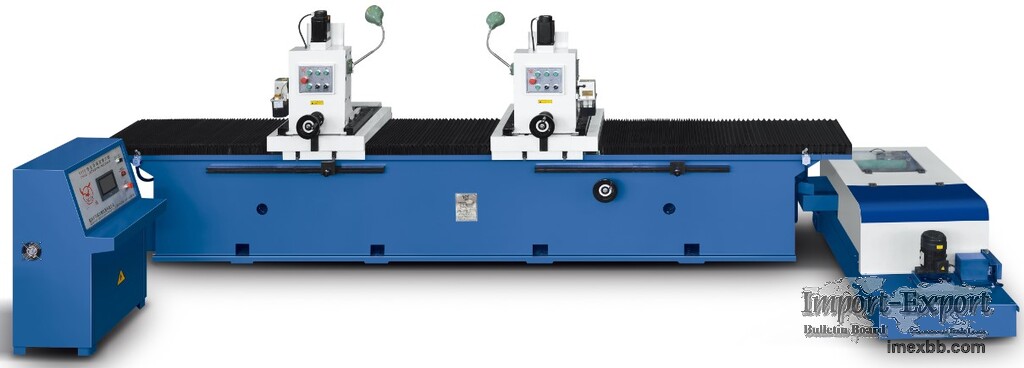

Automatic Knife Grinding Machine Model DMSQ-HF-M-FJ

Product description:
Automatic Knife Grinding Machine Model DMSQ-HF-M-FJ, gantry body, which adopts
the carbon constructional quality steel. It's equipped two grinding motors
which can grind the blades in one time by different stones. The transmission is
linear guide and rack and pinion system, that the machine can last longer,
travel more stable drive.

Automatic feed grinding wheel by the PLC program control system, automatic
control, and memory, storage and dynamic tracking, simple operation, greatly
reducing the time to prepare workpiece, can automatically adjust times of
coarse grinding and accurate grinding.

The multi-layer filter device consists of magnetic separator and paper filter
which mechanism transmission, chain, chain network and micro-switch, etc.

The first step filter via the magnetic separator and then the purified liquid
goes to the filtering paper on the conveyer belt, with the constant
accumulation of impurities on the filtering paper and filtration capacity
decreased, the liquid level will gradually rise, when it reaches to the
specified position, float ball rises and micro-switch turn on, the reducer
drives the conveyer belt mesh forward and takes the sewage & dirty paper into
the sewage tank, then the liquid level drops and the micro-switch resets.

The tank with water shortage alarm device which can measure and control the
water level so as to effectively save time and improve efficiency.

The machine is the best choice for medium-sized printing warehouse, special for
polar and other high-speed steel and carbide steel blade sharpening.

Main feature:
● imported linear guide
● auto greaser device
● multi-layer filter device
● imported electrical components (critical control systems are imported
electrical appliances)
● HMI touch screen
● water-cooled motor grinding
● purification device
● grinding head can move back and forth
● frequency Control (stroke movement)
● automatic grinding stone feeding
● main transmission: rack and pinion transmission
● gantry body
● magnetic chuck
● turbine worm transmission
