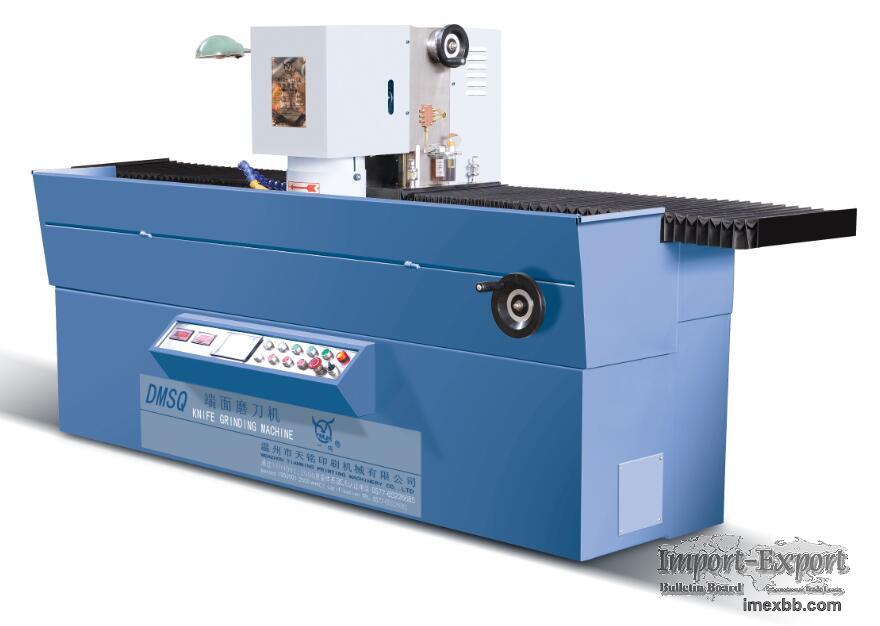

Automatic Knife Grinding Machine Model DMSQ-ZK

Product description:
It's a fully automatic programmable knife grinding machine. It uses stepping
motor, PLC programming control systems, can automatically adjust the times of
coarse grinding and fine grinding. It can automatically feed grinding wheel
with memory, storage and dynamic tracing functions. It uses a dust cover
device, electro-magnetic chuck loaded knife, the key electrical appliance and
key parts' bearing adopt imported electrical components.
It is an ideal grinding equipment for the printing, paper, wood, plastic
leather, making panels and other industries, and it is the best choice for the
small grinding centers, small and medium sized enterprises of printing and
packaging industries.

Main feature:
- PLC programming control system (HMI)
- Automatic feed grinding wheel
- With memory, storage functions
- Electric magnetic chuck: more uniform pressure and more straight-line
grinding make more efficiency
- Delay demagnetization devices: more secure and reliable during grinding
- With centralized greaser: lubricating main box, lift pallet and elevated
screws
- Grinding head equipped with Y series three-phase asynchronous motor
- Max. grinding width: 180mm on 22° angle
- Fixed grinding head stroke
- The main transmission adopts rack and pinion transmission
- Knife rest adopts turbo worm transmission, can rotate freely
- Cantilever-type machine body structure: lathe bed casts with mezzo forte cast
iron
- Linear guide
- Rotation angle of table: adjustable 0 ~ ±90 degree of knife rest
- With dust cover device

Optional device:
- Magnetic filter (extra cost)
- Scraper (Doctor blade) clamp: dedicated for toilet paper device (extra cost)
