AWM3100V Gas Flow Sensor 200 SCCM Straight For Medical Devices

Product Description:

AWM3300V Flow Sensor 1.0 SLPM Straight 1000 SCCM



Features:

The environmental monitoring

Gas flow measurement

Gas content analysis

ventilator / respirator

The mist mechanism

Product technical specifications parameters:

Series name AWM3000

Flow/pressure range + 200 SLPM

Zero ±25.0 mV DC over the entire temperature range

Repeatability ±0.50% of readings

The typical value of response time is 1 ms, and the large value is 3 ms

The interface type is straight

The typical power consumption is 50 mW, and the large power consumption is 60
mW

Compensation temperature range -25°C to 85°C [-13°F to 185°F]

Medium compatibility only dry gas

Shock 100g peak (5 drops, 6 axes)

UNSPSC code 41111931

Signal regulation amplification

The output voltage of the adjustment point is 200 SCCM, 5.0 Vdc

Output temperature drift ±4% full scale

Zero 1 Vdc ±0.05 Vdc

The power supply voltage is 8.0 Vdc for a small value, 10.0 Vdc for a typical
value and 15.0 Vdc for a large value

Common-mode pressure 25 psi

Operating temperature -25°C to 85°C [-13°F to 185°F]

Storage temperature -40°C to 90°C [-40°F to 194°F]

The weight of 10.8 g

Supply of goods

UNSPSC commodity 41111931 flow sensor


Port size 5.08 mm
Shell material Silicon
Trademark Honeywell
Maximum operating temperature + 85 C
Minimum operating temperature -25 C
Product type Flow Sensors
Subcategory Sensors
Unit weight 10.800g

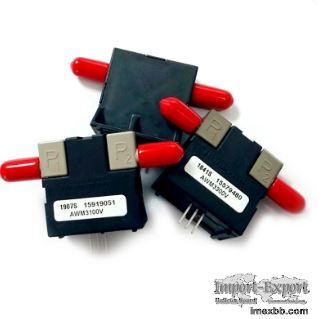

AWM3100V Gas Flow Sensor 200 SCCM Straight For Medical Devices
