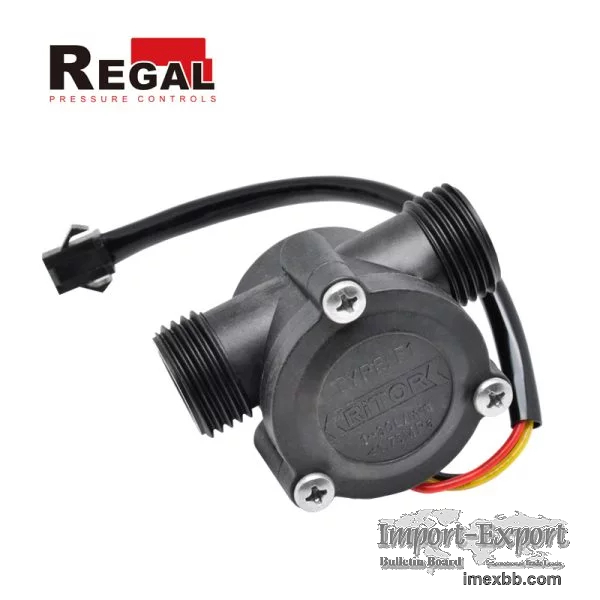

Water Flow Sensor Switch Turbine G1/2*2

The F11 water flow sensor working principle is according to the Karman vortex
which is installed in the eddy current plate in the slow flow area, which has
2*G1/2 connectors and its cable length and type can be customed. Generally, its
rotation speed is proportional to the flow rate. That is when the magnetic core
rotates the hall effect sensor will detect its speed so that the flow sensor
can output the SWFM value.

It can be used in gas boilers, water heaters, water dispensers, etc.

F11 Flow Sensor Features


It has a competitive price with high precision performance so it will be a
perfect product be the alternative sensor for any brand.
Meanwhile, this water flow sensor also has good electromagnetic compatibility &
wide range of working temperatures. So, this lets it has a wide application
range in different kinds of devices.
The F1 series also has a very low-pressure loss when used and its testing
components won’t be blocked by the particulate matter easily. So that it can
reduce the maintenance cost and increase service life.
For more flow sensor types, please click the link to check. Meanwhile, REGAL is
a pressure & flowing industry expert, welcome to visit our homepage for more
information.


C2-C Level Sensor Specification


Model Number F11 Water flow sensor
Terminal Type 3-pin standard connector & wire (customizable)
Interface type 2*G1/2
Operating flow interval 1 L/Min to 30 L/Min
Dielectric Strength 500VAC(<3mA)
Operating Voltage DC 4.75V to DC 5.25V
Operating Current 15mA
Low Output Duty Cycle

50%
Overload Pressure 12Bar (@40℃)
Working Temperature -15 to 85℃
Service life with loading 200000 cycles
Protection Level IP20

Minimum Order: 10 pieces
