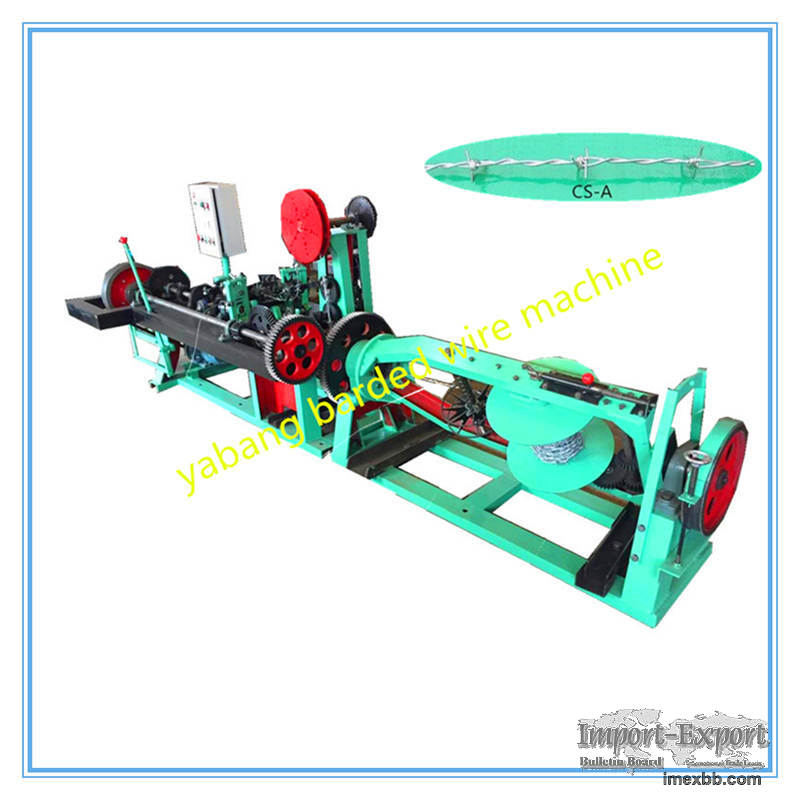

Barbed Wire Machine

Product Description
Barbed wire machines process steel wire into barbed wire through a specific
process. They are mainly used in the field of security protection, such as
fences in prisons, military bases, borders, private territories, and the
perimeter protection of some factories and farms. They can effectively prevent
illegal intrusion of people and animals, and play a good deterrent and
protective role.
Main parameters:
Item CS-A Normal double twisted CS-B Single twisted CS-C reverse
twisted
Motor 3kw 2.2kw 2.2kw
Rated output 70-120kg/h 50-60kg/h 50-100kg/h
Weight 1500kg 1200kg 1200kg
Overall Dimension 1900mmx1300mmx980mm 1900mmx1300mmx980mm
1900mmx1300mmx980mm
Wire collection part size 1800mmx750mmx750mm 1300mmx800mmx700mm
1300mmx800mmx700mm
Barb space 3",4",5" or 4",5",6" As required 3",4",5" or 4",5",6"
Twist 4 4 4
Strand Diameter 1.8-3.0mm 1.6-2.6mm 1.5-2.8mm
Wire Diameter 1.7-2.8mm 1.6-2.2mm 1.5-2.6mm
Rotating Speed of Drive shaft 432r/min 357r/min 432r/min
Function features and advantages:
1. Manually installation, Easy to set up;
2. Steel cover on driving shaft for safety operation;
3. Guiding system to avoid wire snarls.
YABANG wire mesh machine provides a full range of machines, from single-strand
and double-strand barbed wire machines to razor barbed wire equipment, ensuring
buyers can produce different wire types to meet global fencing standards.
