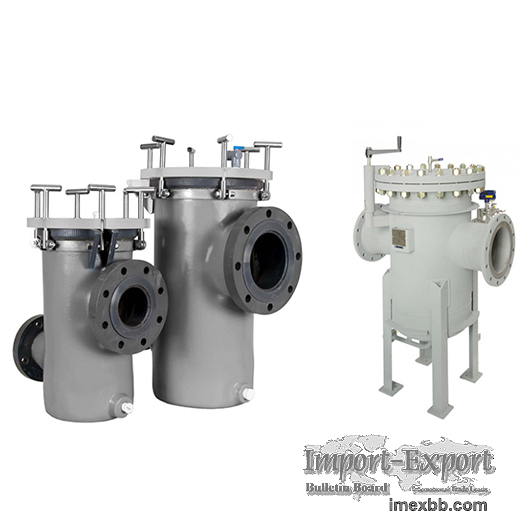

Basket Filter Housing

Basket Filter Housing
Baske Filter Housing--Removing large-size impurities from piping systems
Basket filters filter out particulate impurities in liquids and gases and
protect the pipelines for transporting various liquids and gases.

A basket filter is a small device for removing a small number of solid
particles in a liquid, mainly composed of the main body, filter basket,
flange, and fasteners. Installed on the pipeline, it can remove large solid
impurities in the fluid, so that the machinery and equipment (including
compressors, pumps, etc.) and instruments can work and operate normally, so
as to stabilize the process and ensure safe production.

When the fluid enters the filter basket with a built-in filter screen of a
certain specification, the impurities are blocked, and the clean fluid
passes through the filter basket and is discharged from the filter outlet.
When cleaning is required, open the drain outlet at the bottom of the main
body, drain the fluid, remove the flange cover, take out the filter basket
and clean it, then reinstall it.

Therefore, it is extremely convenient to use and maintain.



Basket filters are used on oil or other liquid pipelines, the filtering pore
area is 2-3 times larger than the through-hole pipe area, far exceeding the
filtering area of Y-type and T-type filters, and the filtering precision is
excellent.



Benefits:


1. The working principle is simple, the structure is not complicated, and it
is easy to install, disassemble and maintain.

2. The equipment has few wearing parts, no consumables, low operation and
maintenance costs, and simple operation and management.

3. Protect instruments, meters and mechanical equipment, and maintain the
safety and stability of production.

4. The filter cartridge is made of stainless steel, and the filtration
accuracy can be customized.



Applicable medium
A, weakly corrosive materials, such as: water, ammonia, oil, hydrocarbons,
etc.;

B. Corrosive materials, such as caustic soda, soda ash, concentrated dilute
sulfuric acid, carbonic acid, acetic acid, ester acid, etc.

C. Low-temperature materials in refrigeration, such as: liquid methane,
liquid ammonia, oxygen and various refrigerants;

D. Materials with hygienic requirements in light industrial food and
pharmaceutical production, such as: beer, beverages, dairy products, grain
slurry medical supplies, etc.

YUBO Manufacturing provides all kinds of stainless steel industrial filters,
our filters can be widely used in multiple industries and complex liquid
filtration, such as the food and beverage industry, industrial water
treatment, chemical filtration, RO system pre-filtration, sterile
filtration, pharmaceutical industry wait.

Our filter series are basket filters, bag filters, self-cleaning filters,
and cartridge filters, in addition, we also provide customized services for
industrial filtration systems to ensure that our customers can get the most
effective filtration solutions.

Contact & Advice
In addition to the showed filter range, we can also manufacture Custom Made
with deviating specifications at the customer’s request.

For the right filtration solution and filter products, contact or email our
filter specialist.

We are happy to help you.

Our team of filter specialists is are 24/7 available.

We are specialized in liquid filtration for over 15 years.

Minimum Order: 1 sets
