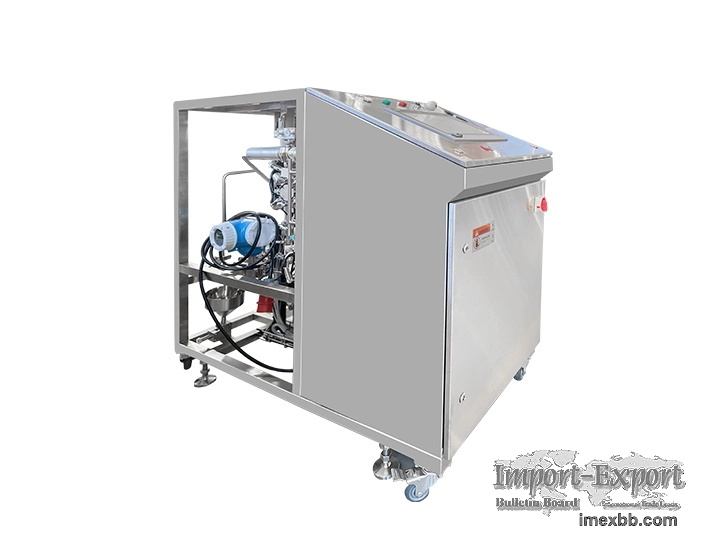

Bio-Pro® Pilot & Process Chromatography System

Bio-Pro® pilot& industrial chromatography systems is suitable for pilot and
large-scale production of biopharmaceutical purification processes. The
automated chromatography systems is designed with integrated modules according
to ASME BPE and GMP requirements, and can be configured in various ways
according to customer specific usage requirements. The system can manually or
automatically achieve processes such as balancing, sampling, rinsing, elution,
automatic collection, clean in place, and can provide customers with
verification documents that comply with GMP regulations.

Features of Bio-Pro® Pilot & automated gas chromatography systems
01.
High Quality with Stability
Key components of the system adopt internationally renowned brands, which are
stable and reliable;

The pipeline design adopts ASME BPE standard, with inner wall electric
polishing, Ra ≤ 0.4um, and automatic welding;

Provide FDA or USP Class VI material certification for non-stainless steel
materials in contact with the material liquid;

All stainless steel materials in contact with the material have a serial
number, serial number/furnace number to ensure traceability;

The instrument adopts digital communication to overcome the problems caused by
analog signals;

The control software adopts self-developed software on the C # platform, which
meets the requirements of FDA 21 CFR Part 11;

Using a database to store data and having mature and reliable solutions to
interface with various DCS systems;

Provide complete GMP verification documents and services;

Can achieve double-column position series-parallel connection.

BIO-PRO® PILOT & PROCESS CHROMATOGRAPHY SYSTEM SPECIFICATION
Model No. Bio-Pro 60 Bio-Pro 180 Bio-Pro 600 Bio-Pro 1200
Bio-Pro 2500 Bio-Pro 4400
Infusion pump High-accuracy
constant-flow pump Sanitary quaternary diaphragm pump
Flow range(L/h) 1~60 1~180 6~600 10~1200 50-2500 150~5000
Flow accuracy(L/h) 1% or 5ml/min 1% or 0.5L/h 1% or 1.5L/h 1% or
3L/h 1% or 5L/h 1% or 10L/h
Tubing 1/4"TC
(OD6.35 X ID4.57) 3/8"TC
(OD9.53 X ID7.75) 1/2"TC
(OD12.7 X ID9.4) 3/4"TC
(OD19.05 X ID15.75) 1"TC
(OD 25.4 X ID 22.1) 1½" TC
(OD38.1 X ID34.8)
Tubing material SS 316L(ASME BPE)， Electro polishing Ra≤0.4um
System pressure(bar) 6
UV-Vis Detector(nm) Fixed wavelength 280nm / adjustable wavelength with 4
channels 200-400/200-800nm
Conductivity range 0.1uS/cm~300mS/cm（ 0.1uS / cm~500mS / cm ）
pH range 0~14
Working temperature 4~40 ℃
Compression air(bar) 5~7
Size(mm) 1400x750x1300/ 1100*700*1200 1370x700x1200 1470x750x1350
1470x750x1350 1800x1200x1800
Weight(kg) 265 /220 230 280 295 630 700

Minimum Order: 1 sets
