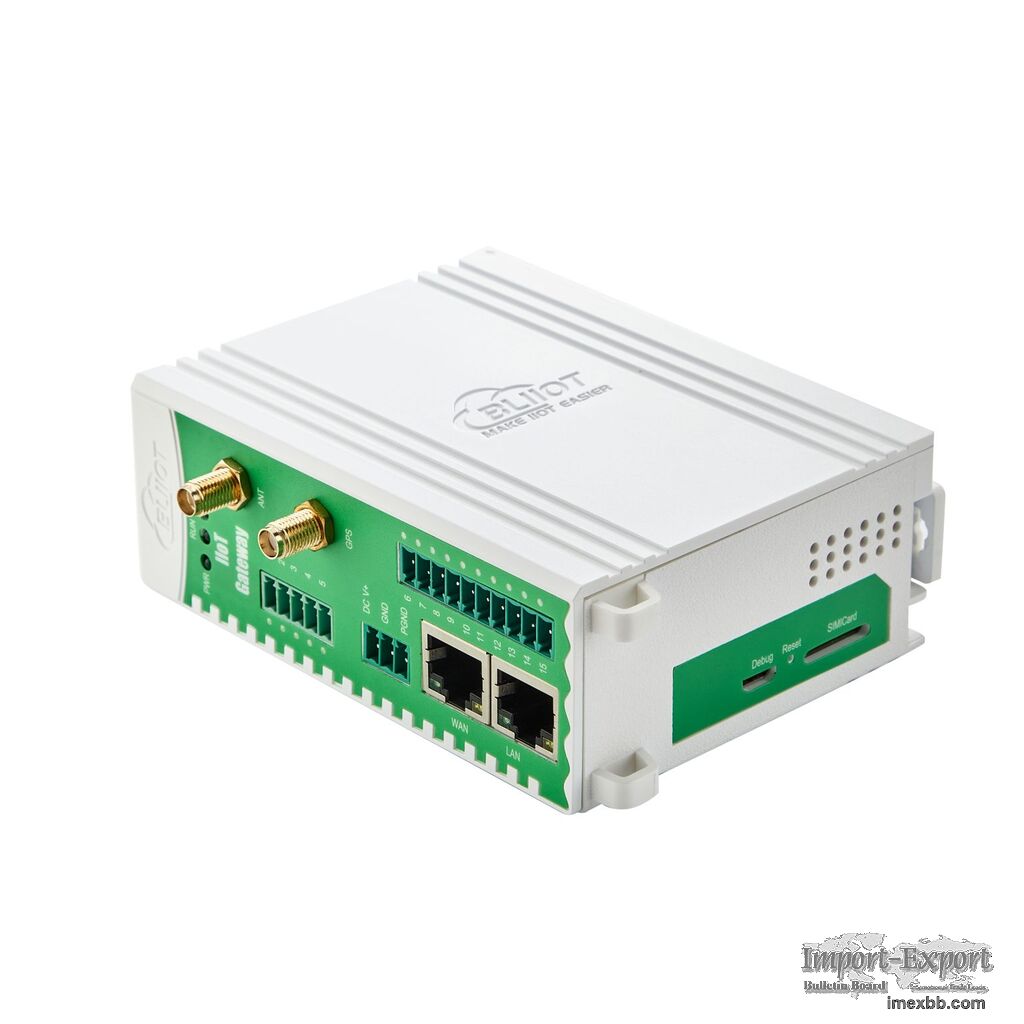

bliiot FX3U to OPC UA BACnet MS/TP to OPC UA IIoT Gateways with

Industrial IoT Gateway BL110 is a rugged industrial IoT gateway, especially
suitable for industrial IoT, for realizing IT and OT integration, OT and cloud
platform communication.

BA112 is a BACnet/IP, BACnet MS/TP, Modbus RTU , Modbus TCP converted to OPC UA
gateway, supports up to 10 devices, 512 data points collection.
BA112 downstream support: BACnet/IP, BACnet MS/TP, Modbus RTU Master, Modbus
TCP Master.
BA112 uplink support: OPC UA.
BA112 adopts embedded ARM MCU and is developed based on Linux OS system. It
provides 2 RS232/RS485 optional serial inputs, 1 power input, 2 Ethernet ports
(WAN port and LAN port) and 2 USB ports. Access to the Internet by WiFi or
Ethernet, characterized by fast rate and low latency.
BA112 supports OpenVPN function.
BA112 supports routing function as well as cascade switch data collection,
which is convenient to collect more industrial equipment data, and the software
function is perfect, covering most of the conventional application scenarios.
BA112 integrated barium rhenium technology adhering to the humanized
configuration interface, as well as remote configuration, remote upgrade
firmware and other functions, the user only through a simple setup .
BA112 adopts the fastening structure with anti-reverse connection protection
power supply design, using its own patented rail snap technology, support for
standard DIN35 rail mounting and wall mounting.
