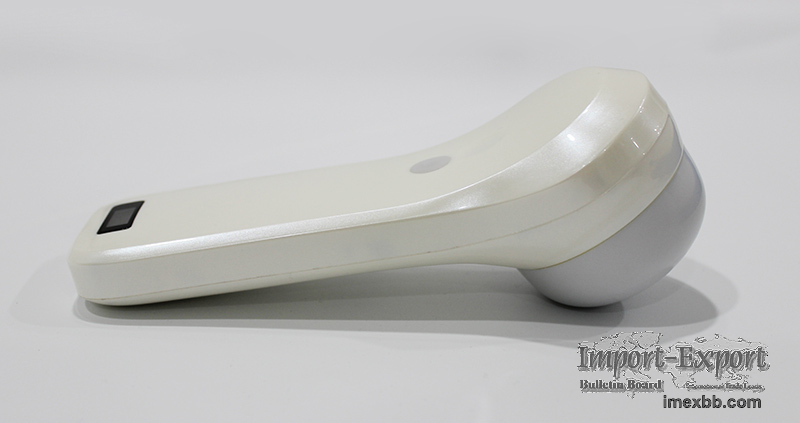

BProbe-2 4D Wireless Bladder ultrasound Scanner

How it works

The Sonostar wireless probe is a mini ultrasound scanner without a screen.
We minimize the components of a traditional ultrasound into a small circuit
board built into the probe, and showing image in smart phone/tablet through
Wifi transferring. image can both show in screen and tablet.Image
transferring through internal wifi from probe, no need external Wifi signal.



Advantage
- Only one probe, convenient for carry
- Wireless, convenient for operation
- 4D array scan, very clear image
- High accurate (5% inaccuracies)
- High speed on scan and process (2s)
- Without distortion of mechanical scanning
- More advanced algorithm, more powerful bladder wall recognition
technology(High recognition rate for the bladder wall with air), more
accurate contour technology, higher accuracy of the probe makes scanning
results more accurate.
- New algorithm, the measurement results are not subject to the bladder
shape and size.
No need to select Gender, Age group and no need to consider special cases
such as the effect of hysterectomy on the measurement results. Good
compatibility for different bladders, no Ubstantial error when measuring
small volume or special shape bladders, easier to operate and use.

- High precision rotary encoder, precise positioning, never need to
calibration.
- Waterproof probe



Specifications
1. Scan mode: array probe, 4D scan;
2. Supporting system: Apple iOS;
3. Measuring range: 10ml ~ 2000ml;
4. Automatic measurement inaccuracies: <5%;
5. Scan and process<2 seconds;
6. Scanned image display frame: 10 frames / seconds;
7. Case Storage: by tablet or mobile phone;
8. Printing: external wireless thermal printer;
9. Battery: Built-in battery, charge one time can work on more than 200
patients;
10. Power: Wireless charge or by USB cable charge;
11. Dimension: 180mm (length) × 60mm (width) × 60mm (thickness);
12. Weight: 420g.
13.Battery working time: 3 hours(according to whether keep scan)

14.Battery charge: by USB charge or wireless charge, take 2 hours

Applications

1. Urology: Determine the degree of acute and chronic urinary retention, and
determine the timing of catheterization and surgery; Neuromodulation was
used to judge the effect of regulation after operation; Determination of the
degree of urethral obstruction or prostate hyperplasia.

2. Obstetrics: Postpartum stress urinary incontinence; Determine the degree
of postpartum pelvic floor muscle damage.

3. Gynecology: Determine the degree of pelvic floor neuromuscular injury
after pelvic tumor surgery, and determine the surgical or rehabilitation
therapy plan. 4. Severe ICU: Determining the timing of intermittent
catheterization for patients with long-term indwelling catheters, reducing
the frequency of catheterization, reducing the risk of infection, and
helping patients recover from spontaneous urination.

5. Neurology department: to determine the damage degree of detrusor and
sphincter in patients with neurogenic bladder.

6. Nursing: For patients with indwelling catheters after surgery, it is used
to determine the timing of catheter removal, reduce the duration of catheter
retention, and reduce the risk of infection.

7. Rehabilitation department: monitoring the effectiveness of pelvic floor
rehabilitation treatment; Develop a training plan for bladder retraining and
rehabilitation treatment, providing a basis for the degree of bladder
function recovery.

8. Emergency Department: Diagnosis of acute urinary pig retention patients
and guidance for urinary catheterization; Acute trauma is used to determine
whether a patient's bladder is damaged or ruptured.

9. Radiotherapy department: Used to determine bladder function during
radiotherapy for patients with pelvic floor tumors or bladder tumors.
