BT Drill Chuck Arbors

Material: 40Cr
Hardness: HRC48-52
Accuracy , : 0.005mm
Package: Plastic box
Type: BT30 BT40 BT50
Balanced: G6.3/12000rpm   G2.5/20000rpm
Standard form: AD  AD/B
According to needs to be possible to provide the balanced hilt,the standard
precision is G6.3/12000rpm.the precise precision is G2.5/20000rpm.
The holder is made of imported high strength material andhas high wear
resistance after special treatment
The shank is connected with the spindle of the machine,and the front end is
used in conjunction with various internalcone drillchucks
OrderNo.
BT-NO.S-L1 L2 L D D1 Drawbar thread Wt(kg)
BT30-J1-45 16.669 110 9.754 31.75 M12 0.60
BT30-J2-45 22.225 115.6 14.199 31.75 M12 0.70
BT30-J3-45 30 956 124.4 20.599 31.75 M12 0.80
BT30-J4-45 42.069 135.4 28.55 31.75 M12 0.85
BT30-J5-45 47.625 141 35.89 31.75 M12 0.90
BT30-J6-45 25.4 118.8 17.17 31.75 M12 0.75
BT130J33-45 25.4 118.8 15.850 31.75 M12 0.75

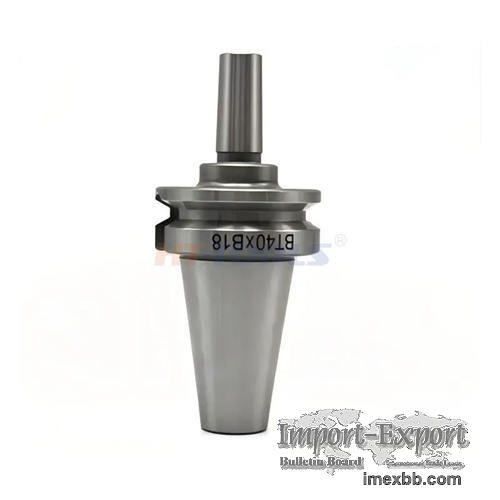

BT Drill Chuck Arbors
Enlarge Click to Enlarge
