BTT-02 Ball Tack Tester

Inclined Type Ball Tack Tester is equipped with the inclined plate of 20°,
30° or 40° inclined angle. The inclined plate is a smooth and flat one made
of aluminum.

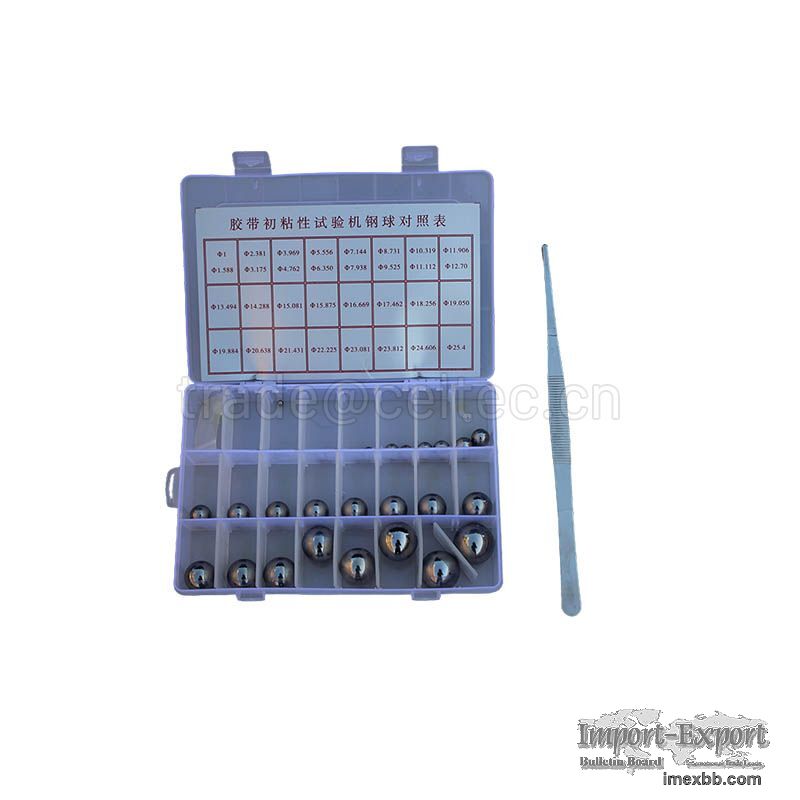

A steel ball of various specifications is placed at the upper part of the
inclined plane, followed in lower 100mm section is the approach table, where
the ball can accelerate after released. The test sample is placed below the
approached table in the next 100mm.
The Rolling Ball Tack Tester is released and sticked at the test area.
Test Principle of BTT-02 Inclined Type Ball Tack Tester
The initial tack of the sample is tested through the adhesion of the adhesive
tape to the steel ball when there is brief contact between the steel ball and
the adhesive surface of the pressure-sensitive tape sample with a small
pressure. It is suitable for testing the adhesion of adhesive tapes, labels,
and other products to steel balls to test the initial tack of the sample.
Gently release the steel balls from the starting point on the inclined plate.
Record the biggest steel ball that can be stuck by sample. Repeat tests with
the balls of adjacent numbers of that largest one to confirm if it’s that
largest one to be stuck.
The numerical value obtained from multiplying the nominal size of a ball is
called the ball number.
Record a result by the ball number. Further, record the angle of an inclined
plate.
BTT-02 Ball Tack Tester Specification
Inclined Angle 0~60°
Test Area Width 120mm
Rolling Ball 1/32~1 inch
Dimension 320x140x180mm LWH
Weight 6kg
