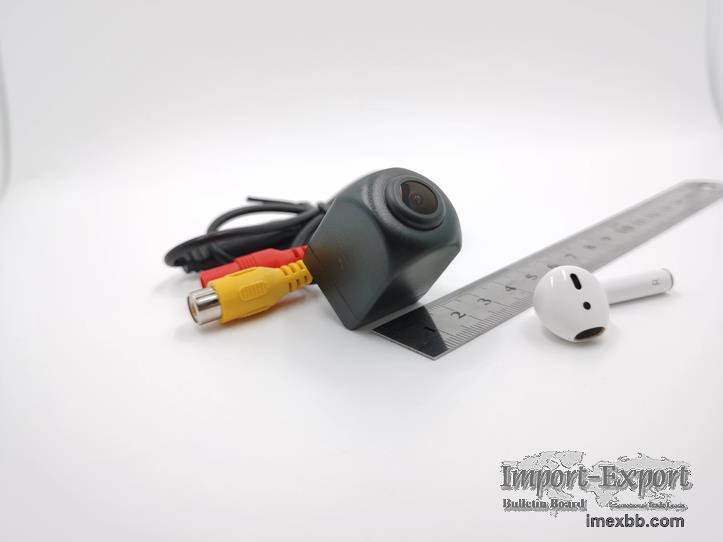

Car Surround View Camera

The in-car surround view 360 automotive video camera system, often referred to
as a 360-degree camera system, provides a comprehensive view of the area around
a vehicle by stitching together images from multiple cameras strategically
placed around the car. This technology enhances driver visibility, aids in
parking, and contributes to overall safety.

Performance Parameter of Car Surround View Camera
Model CK-MOT360-1080-V2.0 REMARKS
Image Sensor GC2053
Image Sensor Size 1/2.9
Effective Pixels 1920*1080
Pixel size 2.8μm x 2.8μm
Optical distortion ≤-17.2%
Image sensor Data output AHD
Maximum Frame Rates and Resolution Full resolution of 1920 X 1080@30fps
SNR max 45dB
Dynamic range 85dB
Min. Illumination ≥0.001LUX at F.No2.0 NO LED
Interface AHD with connector of RCA
Power requirements 5V / 12V
Storage temperature -30℃ to 105℃
operating temperature -20℃ to 85℃
Power Consumption Max 300mW
LED IR-850 NO, but could be customized
OS All automotive systems
Lens size M12 diameter；15mm TTL
Lens Construction 6G + IR
F/NO 2.0
EFL 2.26mm
FOV D:127° H:103° V:78° ±3° Customizable
Shooting distance Fixed Focus， 50cm-infinity

Details of automotive surround view camera
Features

360-Degree View: The car surround view camera system uses multiple cameras
positioned around the vehicle to capture a complete view of the surroundings,
including areas that might be blind spots.

Stitched Image: The images from individual cameras are stitched together in
real-time to create a seamless, bird's-eye view of the vehicle and its
immediate environment.

Parking Assistance: The system aids in parking by providing a clear view of
obstacles, curbs, and other vehicles, allowing drivers to maneuver safely and
accurately.

Obstacle Detection: It helps drivers detect pedestrians, cyclists, and other
objects that might be in close proximity to the vehicle.

Bird's-Eye View: The combined images create a top-down perspective, making it
easier for drivers to navigate tight spaces and crowded areas.

Front, Rear, and Side Views: Some systems allow drivers to switch between
different camera views, including front, rear, and side views, for enhanced
situational awareness.

Real-time Monitoring: The system provides real-time images and is particularly
useful during slow-speed maneuvers and parking.

Object Tracking: In certain systems, moving objects (such as pedestrians or
vehicles) are tracked on the display to enhance driver awareness.

Rain and Low-Light Mode: Some systems offer enhanced visibility during rain or
low-light conditions to aid parking and maneuvering.

Applications

Parking and Maneuvering: The primary application is assisting drivers in
parking, especially in tight spots or crowded areas.

Urban Driving: Surround view 360 camera automotive are valuable in urban
environments where navigating through traffic and parking can be challenging.

Avoiding Obstacles: The system helps drivers avoid collisions with obstacles,
curbs, and other vehicles, contributing to overall safety.

Enhanced Visibility: It provides a comprehensive view of the surroundings,
reducing blind spots and enhancing overall visibility.

Safety and Driver Assistance: In-car 360 degree video camera for car contribute
to advanced driver assistance systems (ADAS), promoting safer driving
practices.

Commercial Vehicles: These 360 degree automotive camera are useful for larger
vehicles, such as vans and trucks, to aid in navigation and parking.

Lane Departure Warning: Some systems offer lane departure warnings by detecting
lane markings and alerting the driver if they unintentionally drift out of
their lane.

Off-Road Driving: In certain off-road vehicles, the system assists in
maneuvering through challenging terrains and avoiding obstacles.

Towing: For vehicles towing trailers, the system helps align the vehicle and
trailer during hitching and maneuvering.

Ridesharing and Car Sharing: Surround view cameras can assist drivers who are
less familiar with a vehicle's dimensions or when sharing vehicles with
multiple drivers.

Mass production capacity: 80k/month

Customization: support, any kind of FPC or PCB shape, change the Lens size,
customizable FOV, housing, and so on.

If you are looking for a reliable camera module supplier, don't hesitate to
contact us!

Minimum Order: 1 pieces
