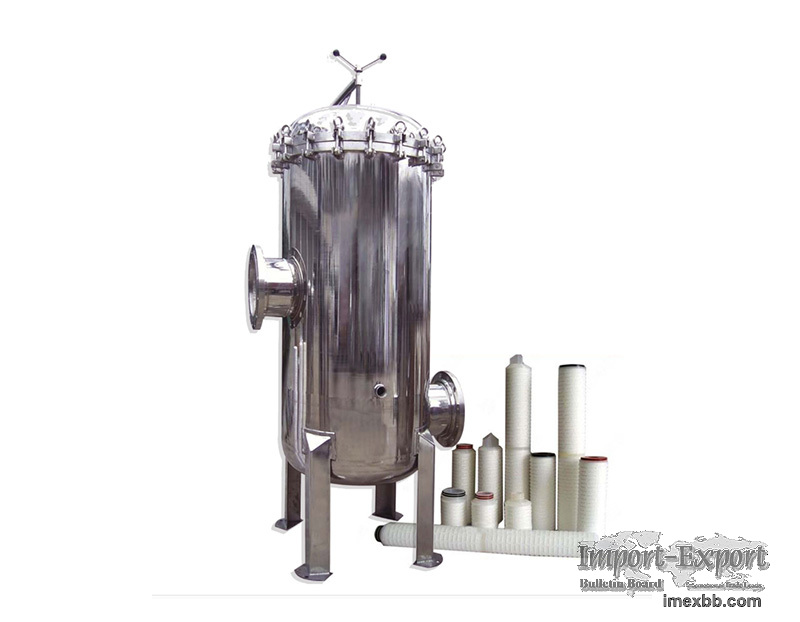

Cartridge Filter Housing

The Industry Cartridge Filter housing is a new type of multifunctional
filter, which consists of two parts: the stainless steel filter housing and
the filter element. It has been widely used in water, oil, paint, and other
liquid purification and solid-liquid separation in machinery, metallurgy,
chemical, textile, printing and dyeing, electroplating, medicine, food, and
other industries.
The Industry Cartridge filter housing is a new type of multifunctional
filter, which consists of two parts: the filter housing and the filter
element. It has been widely used in water, oil, paint, and other liquid
purification and solid-liquid separation in machinery, metallurgy, chemical,
textile, printing and dyeing, electroplating, medicine, food and other
industries.



To meet the flow and filtration requirements, YUANLV can customize cartridge
filters of different sizes.
Industry Cartridge Filter Housing Types
Industry Cartridge filter housings have types according to the filter
elements:








< , br>





1.) Cartridge Filter Housing with PP filter element: PP filter element is
also called PP melt blown filter element. The melt-blown filter element is
made of polypropylene ultra-fine fiber thermally entangled. The fibers
randomly form a three-dimensional microporous structure in space, and the
dimensional pore size is distributed in a gradient along the flow direction
of the filtrate. It integrates surface, deep, and fine filtration to trap
impurities of different particle sizes. The accuracy range of the filter
element is 0.5-100μm, and its flux is more than 1.5 times that of the peak
room filter element of the same accuracy. Different types of end cap
connectors can be configured to meet the needs of various engineering
installations.

Cartridge Filter Housing


Cartridge Filter Housing

2). Cartridge Filter Housing with wire wound filter element: It is refined
by finely winding textile fiber yarn with good filtering performance on a
porous skeleton. Its yarn materials include polypropylene fiber, acrylic
fiber, absorbent cotton fiber, etc. By controlling the tightness and
thinness of the yarn during winding, filter elements with different
precision can be made, which can effectively remove suspended solids and
particulate impurities in various liquids, and have a high purification
effect on various liquids.













3.) Cartridge Filter Housing with pleated filter element: The PLEATED FILTER
ELEMENT is a precision filter device made of wire mesh, stainless steel 304
316 316l, etc. as the filter medium. It has the advantages of small volume,
large filter area, and high precision. Filter accuracy can range from 0.1μm
to 60μm. The filter element end cover sealing and the overall structure
connection are all hot-melt bonding. The products have undergone strict and
complete testing before leaving the factory to ensure the stable performance
of the products.

Cartridge Filter Housing with pleated filter element




Cartridge Filter Housing with wedge wire screen filter elements

4). Cartridge Filter Housing with wedge wire screen filter element: Features
of STAINLESS STEEL WEDGE WIRE FILTER ELEMENT: Good filtration performance,
uniform surface filtration performance for 2-200um filtration particle size;
Good corrosion resistance, heat resistance, pressure resistance, and wear
resistance; The stainless steel filter element has uniform and precise
filtration accuracy; The flow rate per unit area of the stainless steel
filter element is large; The stainless steel filter element is suitable for
low-temperature and high-temperature environments; it can be used again
after cleaning, no need to replace it.



We manufacture high-quality cartridge filter housing systems with leading
designs that are designed based on user needs and drawing specifications.

Minimum Order: 1 sets
