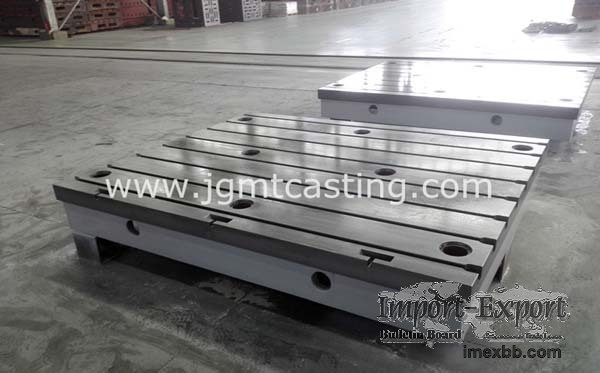

cast iron T slots plates surface plate

Jinggong Cast Iron Base plates / Bed Plates, are one of the modern industrial
gauges. It is suitable for a variety of inspection, precision measurement of
the reference plane. Used for mechanical testing benchmarks of machine tools,
dimensional accuracy or shaped inspect parts for deviation, and as close
crossed, is an indispensable basic tool in the machinery manufacturing.

Cast Iron Base Plates is widely used in machining, tool shop, machine (the
seizure) repair workshop, large equipment base, measuring rooms and precision
machining of the inspection, measurement and grinding, and can accurately
measure, test workpiece flatness, straightness and tolerance of the angle.

Specification:
Size (long x wide in mm)

2000 x 1250

2000 x 1750

3000 x 3000

2000 x 1500

2500 x 2000

3500 x 2500

2000 x 2000

2500 x 2500

4000 x 1000

2400 x 1200

3000 x 1000

4000 x 2000

2500 x 1000

3000 x 1250

5000 x 1000

2500 x 1250

3000 x 1500

5000 x 2000

2500 x 1500

3000 x 1600

6000 x 1000

2500 x 1600

3000 x 2000

6000 x 2000

Customized sizes can also be manufactured as per customer’s requirement.



Standard plates have the Brinell hardness of approx. 180 – 200HB and the
tensile strength of approx. 260 – 300 N/mm2.



Flatness accuracies offered in Grade I, II or III as per DIN876.



All standard T-Slots sizes 18, 22, 28, 36 or 42 can be manufactured, with fits
in terms of DIN 650 ranging from H7 to H12.



T-slots in special or intermediate sizes can be customized. The distance
between T-slots in standard plates is usually 150, 200, 250 or 300 mm. The
distances between clamping options and the T-slots can be according to custom
specification to suit customer requirements.

Minimum Order: 1 sets
