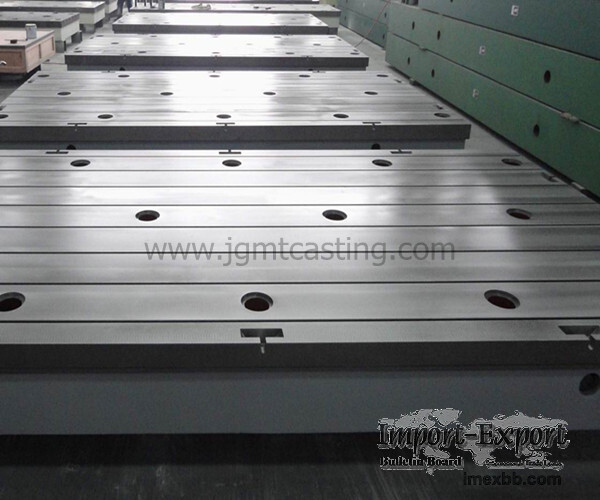

professional cast iron T slotted surface plates

T-Slotted Floor / Bed Plates / Base Plates / Fixed Plates - Overview



These plates are widely used in engineering industries as rigid bases for
layout, marking, inspection, assembly work, large fixtures, special tooling and
production set ups, for mounting jobs for precision welding or for carrying out
machining operations like drilling, boring etc. and also as test beds for
mounting engines, large machines, transmission or other industrial equipment.

T-Slotted Floor / Bed Plates / Base Plates / Fixed Plates – Main features
- Material: GG20-GG30 (HT-200-HT-300).

- Standard: flatness according to DIN876 and T-slots according to DIN650.

- Specification: 750x1000-3000x8000mm or customize.

- Brinell hardness is between 180 -200.

- The tensile strength varies between 260 -300 N/mm².

- Rib structure achieves maximum stability of the plates.



Standard sizes for reference:

No.

Sizes (mm)

Surface accuracy

(according to DIN876)

1

2000*2000*300

I/II/ , III

2

2500*2000*300

I/II/III< , br>
3

3000*2000*300

I/II/III
< , br>4

3500*2000*300

I/II/III

5 ,

4000*2000*300

I/II/III

6
,
4500*2000*300

I/II/III

7

, 5000*2000*300

I/II/III

8

5500 , *2000*300

I/II/III

9

6000*200 , 0*300

II/III

10

6500*2000*300 ,

II/III

11

7000*2000*300
< , br>II/III

12

8000*2000*300

II , /III

Other sizes and surface accuracy on request!




Large plates can be connected by single piece as following:

L(mm)

W(mm)





2000

2500

3000

3500

4000

3500

3500

2000
,
1250+1250

1500+1500

1500+2000

2000+2000

4500

4500

5500 ,

5500

6500

6500

7500

7500

8500

4000+4500

950 , 0

4000+5500

10500

4000+6500

11500

4000+7500

12500

4 , 000+4000+4500

13500

4500+4500+4500

14500

4000+4000+6500

15500
,
4000+4000+7500

16500

4500+4500+7 , 500

17500

5500+5500+6500

1850 , 0

5500+6500+6500

19500

6500+6 , 500+6500

20500

6500+6500+7500

Minimum Order: 1 sets
