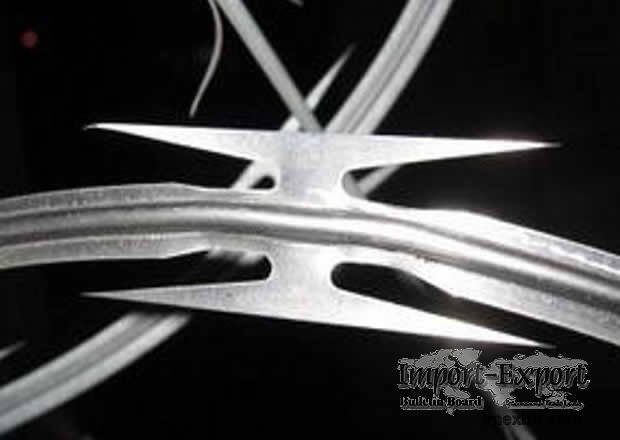

CBT 65 Concertina Razor Wire Coils

CBT-65 razor wire, also known as concertina razor wire coils, its anti-theft
capability is more widely used than ordinary razor wire (BTO-22).

CBT-65 razor wire says its model. 65 is the length of the blade, which is 65mm.
The thickness of the blade is also different from that of BTO-22. The thickness
of the barbed wire of the CBT-65 blade is 0.6mm, the wire diameter is 2.6mm,
the blade width is 21mm, and the blade spacing is 100mm (two distance between
blades).

The circle diameter of CBT-65 razor wire range: 30cm-98cm, of which 50cm, 60cm,
100cm are commonly used, and other specifications can be customized according
to customer needs.

Installation method of CBT-65 razor wire:

The single-spiral blade barbed wire installation method is installed in the
form of direct expansion without the need for a buckle between the two circles.

Use V-shaped or Y-shaped brackets, chassis fixing bolts, hot-dip galvanized or
stainless steel wire, with stainless steel buckles, and fix the pulled blade
barbed wire. The distance between the circles is generally about 20-30cm.

As the blade is sharp, for the safety of the installer, wear protective gloves
and tools for installation.

Packaging of CBT-65 razor wire: inner moisture-proof paper and outer braided
tape to prevent moisture and rust, causing unnecessary losses.
The characteristics of CBT-65 stainless steel razor wire: it has the advantages
of beautiful appearance, hard to damage, anti-corrosion, convenient
construction, economical application and so on.
