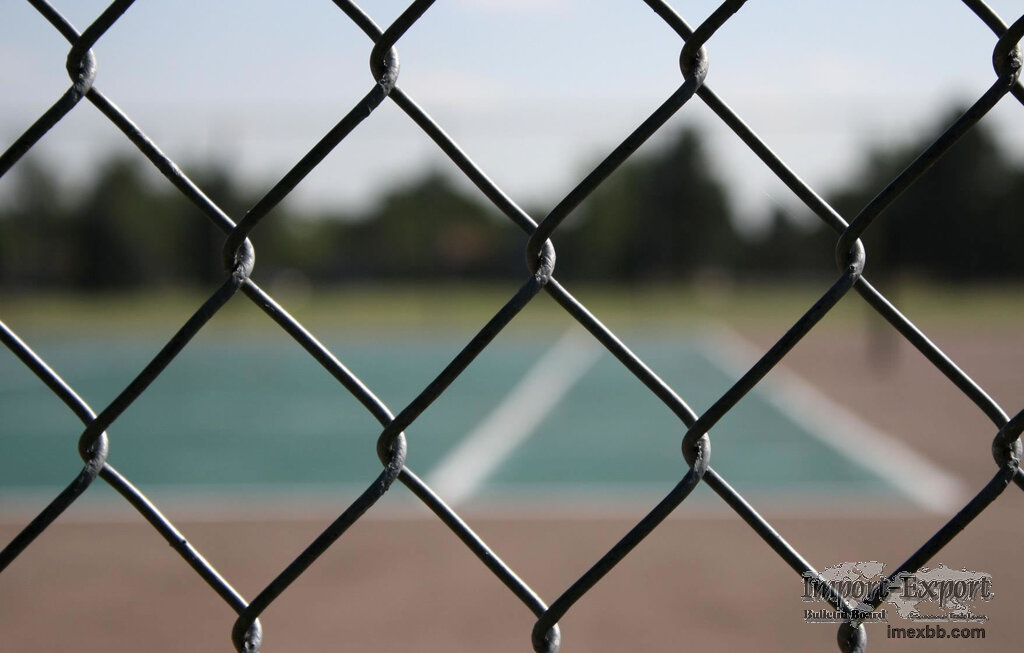

Chain Link Fence and Accessories

We can offer galvanized iron chain link fence and plastic-coated iron chain
link fence. Fitted with steel posts, chain link gates and accessories.

Galvanized Steel Mesh Rolls Chain Link Fence
Metallic coatings for Galvanized Chain Link Fence Fabrics (cold electro
galvanized or hot dipped galvanized) are standard. Galvanized steel chain link
fence are made with wires pregalvanized. The wires are galvanized and the
minimum zinc weight for horizontal wires is 275 g/m2 and for the vertical wires
is 290 g/m2. With zinc protective layer, the gal. steel fence offers a good
acid and alkaline resistance and is suitable for outdoor fencing uses against
weather and sunshine. We offer fence fabrics and matching posts to complete the
fencing system. The fence posts are also made of carbon steel treated with
galvanizing coating layer. Posts types include peach post, square post, Holland
posts. Galvanized chain link can also be used as decorative mesh in modern
buildings.

Features:
Steel wire mesh fencing provides an aesthetically pleasing yet strong barrier.
Each fence panel is produced by an automatic hooking woven process. The simple,
clean lines are particularly suitable for both prestige and security
applications including residential, sports, leisure and industrial uses. Woven
diamond pattern provides strong, durable and flexible construction.



Specifications:

Aperture: 50*50mm, 60*60mm

Wire Diameter: 3.0mm, 4.0mm or 5.0mm

Mesh Size (H*W):1800*2500mm or 2000*3000mm
Roll length: 0.5-50m
Roll width: 0.5-3m

Post and Mesh: Galvanized/powder coating/PVC coated

Installation: Pre-buried or Screw Fixing

Surface treatment: Electric galvanized, hot dipped galvanized, pvc coated.

Processing of Chain Link Fence Fabrics and Posts:
Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting →
Weaving in Rhombic Opening → Folds/Curves Bending → Electric Galvanizing/Hot-
dipped Galvanizing → PVC Coating /Spraying → Packing → Loading

Fence Post Process: Raw Material → Cutting → Hole Drilling → Electro
Galvanizing/Hot-dipped Galvanizing → Sandblasting → PVC Coating/Spraying →
Packing → Loading
