CHM-550 High Precision 4 Heads SMT PCB Component Mounting Machine With Tabl

Perfect & Ecnomic 4 heads 50 Feeders PCB Component Placement Machine 220V/ 110V

CHM-550 SMT Pick and Place Machine with base, good for SMT Batch production​

Auto nozzle change, no need manual change nozzle, working with universal Yamaha
feeders



Working video on Youtube:

4 Heads Desktop SMT Pick Place Machine CHM-550 production:
https://www.youtube.com/shorts/dP1k , el83B7E



CHM-550 work with Yamaha pneumatic feeder& electric feeder:
https://youtu.be/Nmt3wSvmE50



Model: CHM-550

* 4 Placement Heads with auto nozzle changer
* Support 50pcs Yamaha pneumatic& electric feeders

* Higher configuration with high accuracy, 0201 supported
* Comes with computer (monitor, Keyboard, USB mouse)



Charmhigh CHM-550 Specifications
Dimensions 980(L)x1050(W)x880mm(H)
Weight 190kg
Power Supply AC220V (50Hz, single phase), 2.1kW
Air Supply 0.5MPa ~ 0.6MPa
Vacuum Generation Japan PISCO vacuum generator
Mounting Head 4 Heads
Mounting Speed 6000cph(optimal)
Mounting Accuracy ±50μm@μ±3σ/chip
Control Accuracy 5μm
Component Height 12mm
Component Type
0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/I , C, etc.)

PCB Thickness 0.6mm~3.5mm
PCB Size 400mm(L)x300mm(W)
PCB Delivery Manually
Nozzle Change Automatic nozzle change (13-hole nozzle library)
Control System
Built-in industrial computer (Windows system)

equipped with monitor, keyboard, and mouse

Drive System X&Y axis driven by servo motors; adopting flexible S-curve
acceleration and deceleration
Transmission System Ball screw + linear guide
Feeding System
50 Yamaha 8mm standard pneumatic/electric feeder slots

(also suitable for IC tray + stick/tube/vibration feeder)

Vision System
Snapshot camera x 4 (component size applicable: 14mmx14mm);

IC camera x 1 (component size applicable: 25mmx25mm);

Mark camera x 2

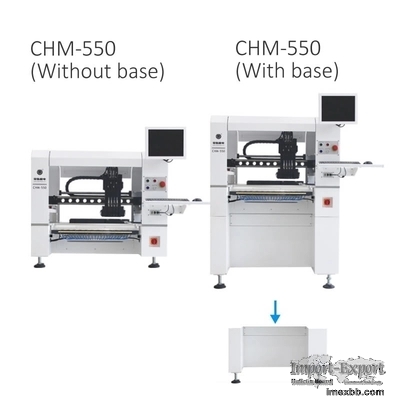

CHM-550 with base, you can choose a deskotp one or a vertical one:



CHM-550 High Precision 4 Heads SMT PCB Component Mounting Machine With Table 0

CHM-550 High Precision 4 Heads SMT PCB Component Mounting Machine With Table 1



Highlight:

1. Auto nozzle exchange, you don't need to change nozzle manually, very
convenient!

2. Strong vision camera system, updated cameras with higher accurate, IC
placecd more accurate, and min component 0201.

3. High configuration with smart software, longer lifespan, Charmhigh provide
stronger mechanical part.



Working with universal standard Yamaha Feeders(purcahse separately):

Option:

1. 8mm/ 12mm /16mm /24mm /32mm /44mm electric feeder
2. 8x4mm / 12mm/ 16mm / 24mm /32mm / 44mm pneumatic feeder

3. Vibration feeder



Customer feedback:

CHM-550 High Precision 4 Heads SMT PCB Component Mounting Machine With Table 2



Charmhigh SMT, factory supply, prompt delivery:
CHM-550 High Precision 4 Heads SMT PCB Component Mounting Machine With Table 3



Charmhigh, top Chiense brand.

CHM-550 High Precision 4 Heads SMT PCB Component Mounting Machine With Table 4



Please note:
The pick and place machine is complete set with all accessories included in the
package, machine ready to use!
The only thing you need to prepare is an external air compressor (supplying air
for pneumatic feeders).
Please purchase this machine with confidence.
Enjoy with your pick and place machine!

Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase
and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before
ship out.

Tech support:
Kimi's Mob/ WhatsApp: 0086 135 106 75756
Skype: kimiliu89

E-mail: kimi@charmhigh-tech.com
Welcome to follow us on YouTube:
https://www.youtube.com/c/KimiLiuCharmhigh/vid , eos
If you want to know more information, please contact us by E-mail.
We will response you at the first time.

Click to Enlarge
