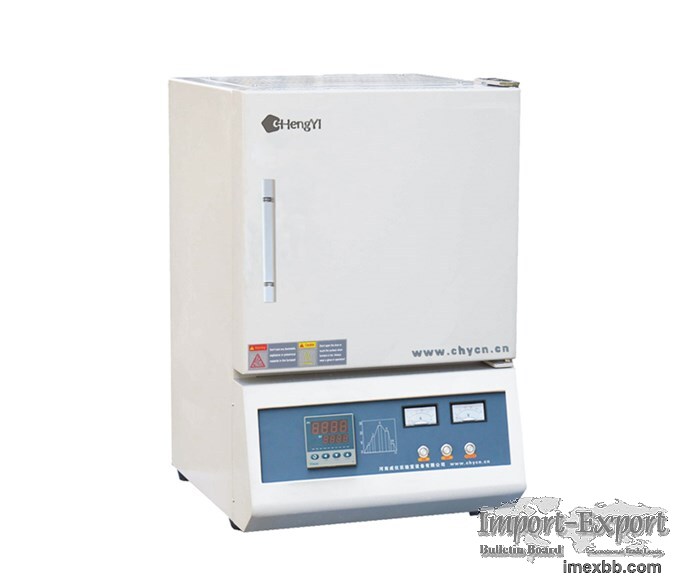

CHY-M1215 Laboratory Box Type 1200 degree 4.5L Muffle Furnace

CHY-M1215 Laboratory Box Type 1200 degree 4.5L Muffle Furnace laboratory
Muffle Furnace muffle furnace for sale

1.150*150*200mm chamber dimension
2.high quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
5.Made by Henan Chengyi

CHENGYI-Box Type Muffle Furnace APPLICATION
1.laboratory heat thermal processing cement, building materials industry etc
2.Pharmaceutical medicines inspection, preteatment of medical sample
3.Analytical Chemistry Industry: water analysis and environmental analysis
4.Analysis of coal quality,determine moisture, ash, volatile matter, ash
melting point analysis, gray component analysis, and elemental analysis

Muffle Furnace PARAMETERS
1 Product Name 1200 Degree Muffle Furnace
2 Model M1215
3 Furnace Door side open type
4 Display Model Highlight LED display
5 Maximum Temperature 1150℃
6 Working Temperature ≤1100℃
7 Heating rate ≤20℃/min  Suggest:10℃/min
8 Heating zones Single heating zone
9 Hearth dimensions 150mm×150mm×200mm
10 Hearth volume 4.5L
11 Control mode Intelligent PID auto control
12 Temperature Accuracy ±1℃
13 Temperature curve 30 segments programmable
14 Over heat alarm Have
15 Overcurrent protection Have
16 Thermocouple Failure Protection Have
17 Temperature Sensor K-type thermocouple
18 Heating Element Fe-Cr-Al Alloy doped by Mo
19 Hearth Material high purity alumina fiber
20 After-sales service 12 month warranty, durable maintaince and
repair support
21 Power Supply 220V  50HZ
22 Rated power 1.8kw
23 Overall dimensions 390×600×430 (mm )
24 Packing 3-ply wooden case
25 Accessories Plate,Protective Glove,Crucible Tong,Crucible,User
Manual.

Our website: www.hnchengyi.com

Minimum Order: 1 sets
