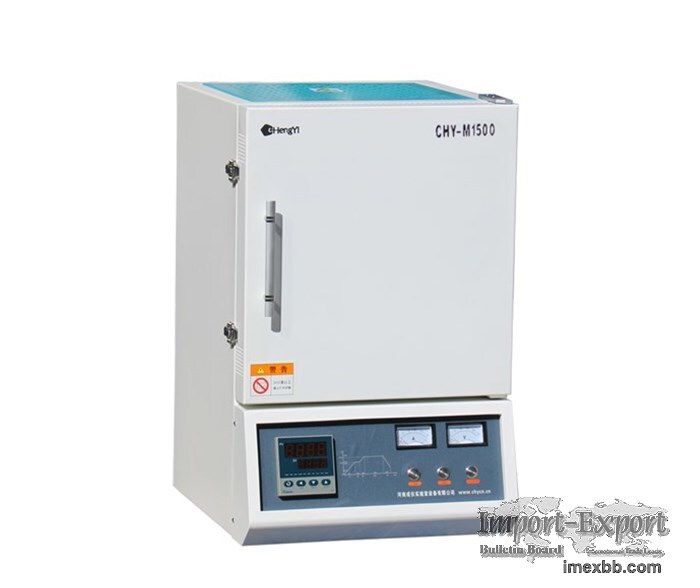

CHY-M1516 High Temperature 1500 degree 4.1L Muffle Furnace

CHY-M1516 High Temperature 1500 degree 4.1L Muffle Furnace Laboratory use
muffle furnace

1.160*160*160mm chamber dimension
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
5.Made by Henan Chengyi

CHENGYI-electric muffle furnace APPLICATION
1.Laboratory heat thermal processing cement, building materials industry etc
2.Pharmaceutical medicines inspection, preteatment of medical sample
3.Analytical Chemistry Industry: water analysis and environmental analysis
4.Analysis of coal quality,determine moisture, ash, volatile matter, ash
melting point analysis, gray component analysis, and elemental analysis

PRODUCT PARAMETERS
Safety Operation Regulations of High Temperature Muffle Furnace
1. The horse boiling furnace should be placed on a solid concrete table, and
flammable and explosive products should not be stored around it.
Second, the horse boiling furnace must have a special electric gate control
power supply, and the cable specifications used must meet the working current
requirements of the equipment.
3. Burning organic matter, pre-ashing, and then burning in the furnace.
4. After use, the power must be cut off first, and the door can only be opened
after the temperature drops below 100℃.
5. There should be enough fire-fighting equipment in the working room.

1 Product Name 1500 Degree Muffle Furnace
2 Model M1516
3 Furnace Door side open type
4 Display Model Highlight LED display
5 Maximum Temperature 1350℃
6 Working Temperature ≤1350℃
7 Heating rate ≤20℃/min  Suggest:10℃/min
8 Heating zones Single heating zone
9 Hearth dimensions 160mm×160mm×160mm
10 Hearth volume 4.1L
11 Control mode Intelligent PID auto control
12 Temperature Accuracy ±1℃
13 Temperature curve 30 segments programmable
14 Over heat alarm Have
15 Overcurrent protection Have
16 Thermocouple Failure Protection Have
17 Temperature Sensor S-type thermocouple
18 Heating Element SiC Heating Rod
19 Hearth Material high purity alumina fiber
20 After-sales service 12 month warranty, durable maintaince and
repair support
21 Power Supply 220V  50HZ
22 Rated power 3.0kw
23 Overall dimensions 460×530×730 (mm )
24 Packing 3-ply wooden case
25 Accessories Plate,Protective Glove,Crucible Tong,Crucible,Door
Block,User Manual.

For more laboratory equipment, please click here to visit our website.

https://www.hnchengyi.com/1500c-mu , ffle-furnace/high-temperature-muffle-
furnace.h , tml

Minimum Order: 1 sets
