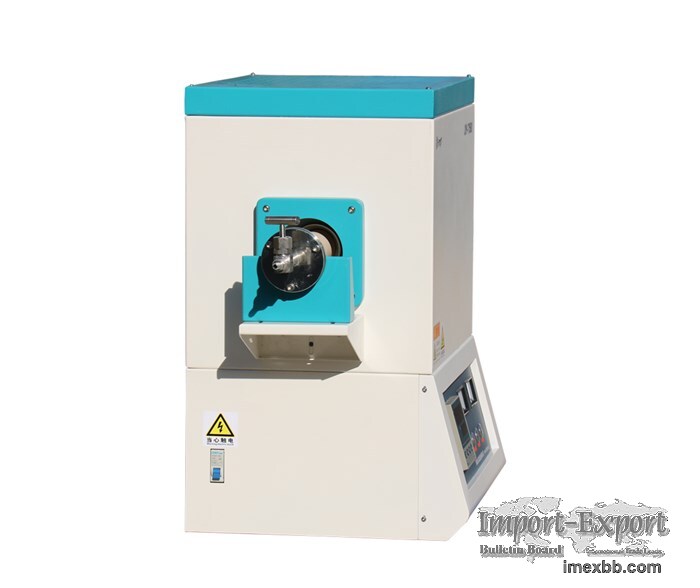

CHY-T1580B Laboratory High Temperature Dual Zone Tube Furnace

CHY-T1580B Laboratory High Temperature Dual Zone Tube Furnace High
Temperature Tube Furnace Vacuum Tube Furnace Distributor

1.O.D80*1000 high purity Corundum Tube
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
5.Made by Henan Chengyi

CHENGYI Tube Furnace APPLICATION
1.Laboratory heat thermal processing
2.High Vacuum Sintering Heating Annealing Brazing
3.Laboratory Thin Film Preparation,Nano tube growthing
4.Laboratory CVD system,graphene growthing,preparation.

lab Tube Furnace PARAMETERS
Product Name 1500 Degree Tube Furnace
Model T1580B
Furnace Door Open Type Furnace
Display Model Highlight LED display
Maximum Temperature 1350℃
Working Temperature ≤1300℃
Heating rate ≤20℃/min  Suggest:10℃/min
Heating zones two heating zone
Quartz Tube Diameter O.D80*1000mm
Inner Diameter I.D70*1000mm
Heating Zone Length  230+230mm
Constant Heating Zone 180+180mm
Control mode Intelligent PID auto control
Temperature Accuracy ±1℃
Temperature curve 30 segments programmable
Over heat alarm Have
Overcurrent protection Have
Thermocouple Failure Protection Have
Temperature Sensor S-type thermocouple
Heating Element SiC Rod
Quartz Tube Material High Purity Corundum Tube
After-sales service 12 month warranty, durable maintaince and repair
support
Power Supply 220V  50HZ
Rated power 5.0kw
Overall dimensions 800×540×750 (mm )
Packing 3-ply wooden case
Accessories Protective Glove,Crucible Tong,Crucible,Corundum Tube,
Vacuum Flange,User Manual.

CHENGYI is a trusted laboratory furnace manufacturer with a global reach. We
can supply high quality electric muffle furnace and tubular furnace. Customized
business is welcome!
